TICK PERFORMANCE .660" LIFT DUAL VALVE SPRING KIT

$229.99

🚚 FREE SHIPPING*

PRODUCT DETAILS

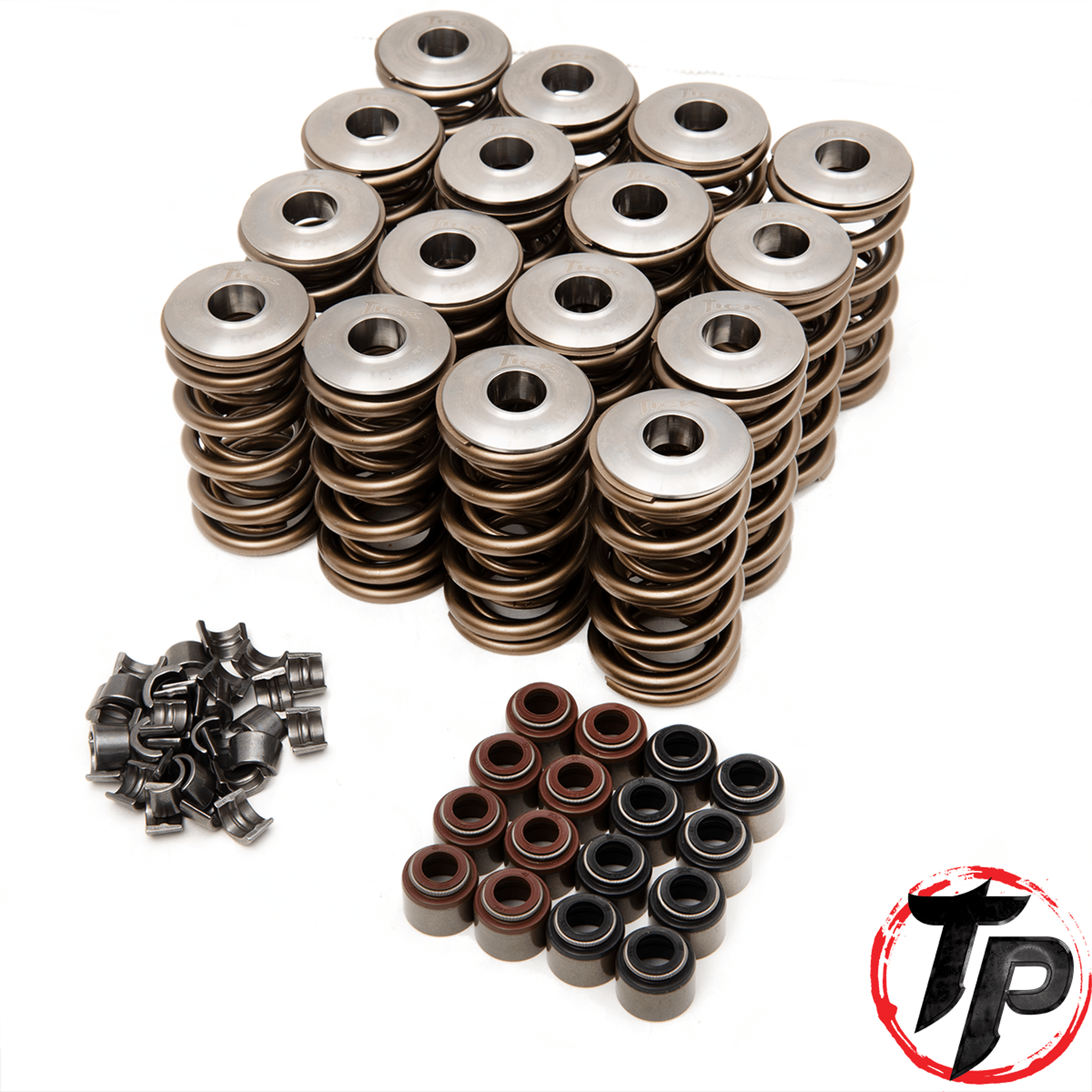

Tick Performance proudly presents thier .660" Lift Dual Valve Spring Kit for all LSx Engines, featuring only the finest components and assembled in-house at Tick Performance! This high quality setup is included in each of thier Elite Series Camshaft Packages, and features the following components:

  • 16x PAC Racing #1904 Dual Valve Springs rated to .660" Lift
  • 16x Lightweight Tool Steel OR Titanium Retainers
  • 16x Spring Locators for Stock Guides OR Aftermarket Bronze Guides
  • 16x Valve Locks
  • 16x Valve Stem Seals, Brown & Black
One of our favorite aspects of this kit is that the tool steel retainer is the lightest steel retainer made for 1.300" dual springs, only weighing 13.9 grams or 16.4 grams with locks. Those looking for the lightest valvetrain possible should upgrade to the optional titanium retainers, which are the lightest available for LSx dual springs, weighing in at 8.5 grams, or 11 grams with locks.


This is a drop-in spring kit for the following engines: LS1, LS2, LS3, LS4, LS6, L76, L92, L99, LQ4, LQ9, L33, and LSA. Will fit LS7 Engines with the proper amount of shimming. This kit will NOT fit LS9 engines.

Specifications are as follows:
O.D. (in): 1.290
I.D. (in): 0.950
Inside Spring I.D. (in): 0.694
Install Load (LB): 157
Install Height (in): 1.780
Open Load (LB): 400
Open Height (in): 1.125
Coil Bind Max (in): 1.010
Lift Max (in): 0.660
Damper: No
Rate: 370

Part Number TP660DVSK
Part Type Valve Spring Kit
Brand Tick Performance
Engine Type Gen III/IV
Max Lift .660
Style Dual



*Item ships directly from vendor.
