INJECTOR DYNAMICS ID1050X 1065cc - LS3/L99/L76/LS7 1050.34.14.15.8
INJECTOR DYNAMICS ID1050X 1065cc - LS3/L99/L76/LS7 1050.34.14.15.8

INJECTOR DYNAMICS ID1050X 1065cc - LS3/L99/L76/LS7 1050.34.14.15.8

$1,024.00

🚚 FREE SHIPPING*

PRODUCT DETAILS

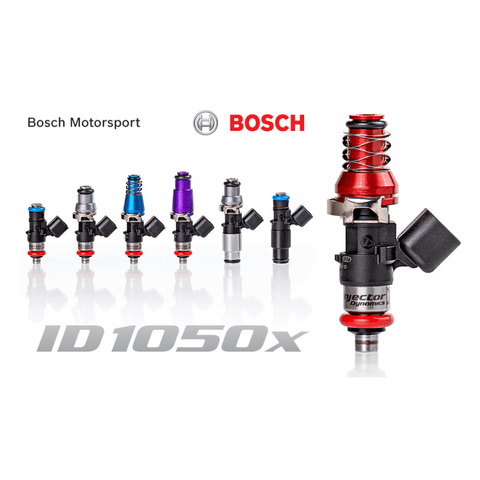

Injector Dynamics ID1050x for LS3/LS7/L76/L99 height

The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x.

Like the ID1300x and ID1700x, the ID1050x is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner.

  • Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels
  • Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors
  • Improved internal flow path increases output by 5% without sacrificing low flow performance
  • Stronger magnetic circuit offers stable operation up to 10 bar
  • Replaceable inlet filter extends service life

Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR


Part Number 1050.34.14.15.8
Part Type Fuel Injector
Brand Injector Dynamics
Height LS3/L99/L76/LS7
Flow Rate @ 43.5 psi 1065cc/min (101.4lb/hr)
Flow Rate @ 58 psi 1229.6cc/min (117.1lb/hr)
Connector Style  EV6/USCAR
Quantity Set of 8



*Item ships directly from vendor.
