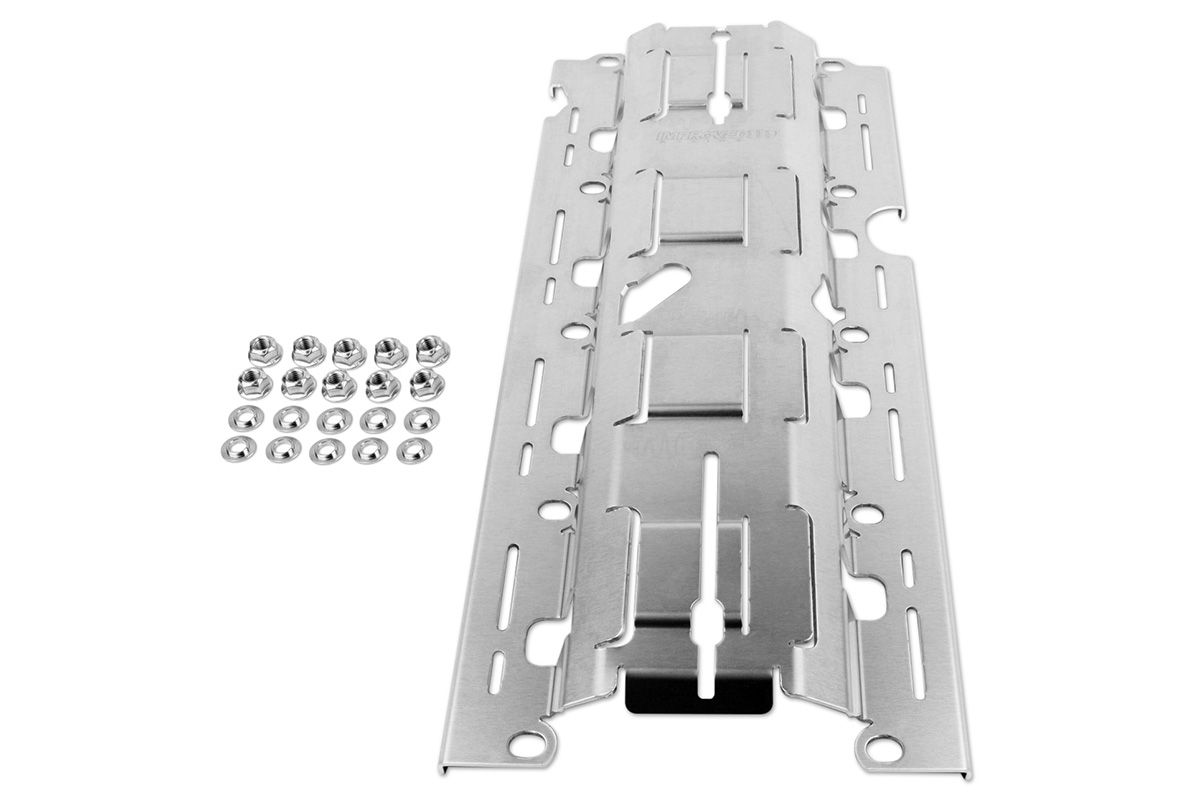

Improved Racing Windage Tray for up to 4" Stroke - C5 & C6 Corvette
Improved Racing's performance aluminum windage tray for the C5 and C6 Corvette wet sump oil pans clears up to a 4" stroke and works with both factory studs and ARP studs.
These windage trays fit the C5 Corvette "batwing" oil pan without modification. Some modification is required to work with the C6 oil pan (ribs inside the C6 oil pan need to be ground down to clear the windage tray).
Improved Racing has designed this windage tray to maximize oil drainage while optimizing windage control. Made from aluminum, it weighs less than half as much as the steel factory tray.
Features and Benefits:
- Clears all factory and aftermarket rods and crankshafts up to a 4" stroke
- Compatible with C5 Corvette wet sump pan without modification. C6 pan requires modification.
- Optimized to improve oil scavenging and windage control
- Works with factory and ARP studs
- More than 50% lighter than stock windage tray, made of 5052-H32 aluminum
- Lifetime Warranty
- Made in the USA
Includes:
- 1x EGM-241 aluminum performance windage tray
- 10x locking flange nuts for factory studs (for ARP studs, use nuts provided by ARP)
- 9x reducing bushings for use with factory studs
- Installation instructions
Applications:
- 1997-2004 Chevrolet Corvette (C5) oil pan
- 2005-2013 Chevrolet Corvette (C6) oil pan, wet sump only. Some modification to oil pan required.
- Fits engines with factory or aftermarket rods and crankshafts up to a 4.000” stroke.
-
Does NOT fit engines with stepped main caps (Dart LS Next engines).
