HOLLEY HI-RAM - (SQUARE-105mm) SATIN 300-117
HOLLEY HI-RAM - (SQUARE-105mm) SATIN 300-117

HOLLEY HI-RAM - (SQUARE-105mm) SATIN 300-117

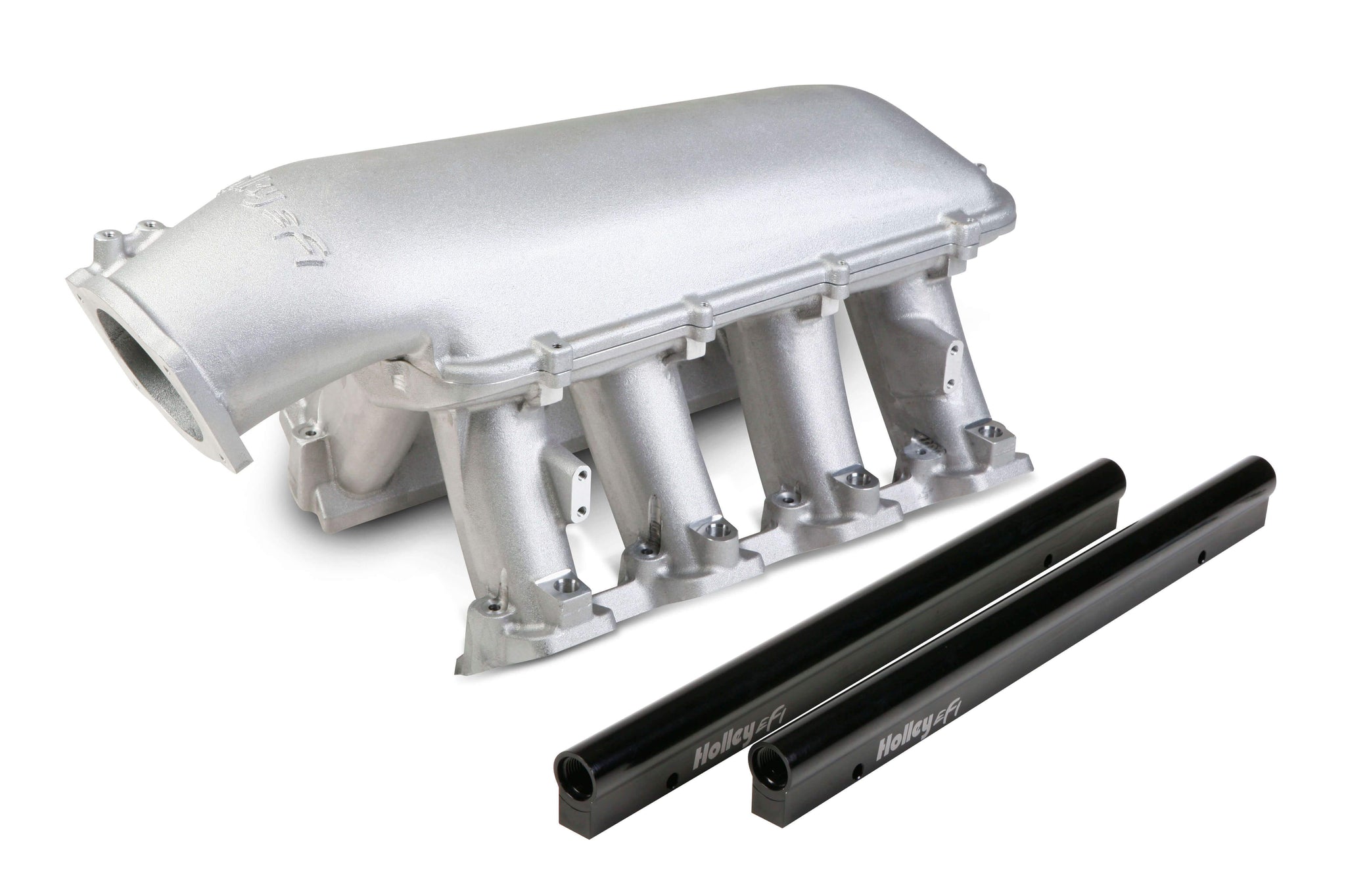

  • Modular Hi–Ram Intake Manifold #300-117
  • Holley Fuel Rails


The Holley GM LS3/L92 Modular Hi–Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet–metal for high–performance applications where induction system height is not limited. Coupling this Hi–Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget–minded cost. Aggressive, bold, race–bred styling will make bad intentions clear for drag race, muscle car, marine, off–road, sandrails, pulling trucks, track, street–rod applications and more!

  • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems
  • Runner length and the tapered cross–section designed to perform well for a wide range of engine configurations
  • EFI fuel rails are machined for –8AN O–ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi–Ram kits
  • Cast aluminum construction
  • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000–8000+RPM

Part Number 300-117
Brand Holley
Engine Type Gen III/Gen IV
Port Style Square
Throttle Body Port 105mm
RPM Power Band  7000-8000+

Installation Notes: These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration. Top can be mounted forward or backward. Intake Manifold does NOT include 102mm GM LS Throttle Body.

NOTE: The EFI versions of the LS Hi-Ram intake manifold and fuel rail are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors. OE LS fuel injectors may not fit properly in the Hi-Ram EFI intake manifold fuel rail assembly without the use of height adapters.

*Item ships directly from vendor.
