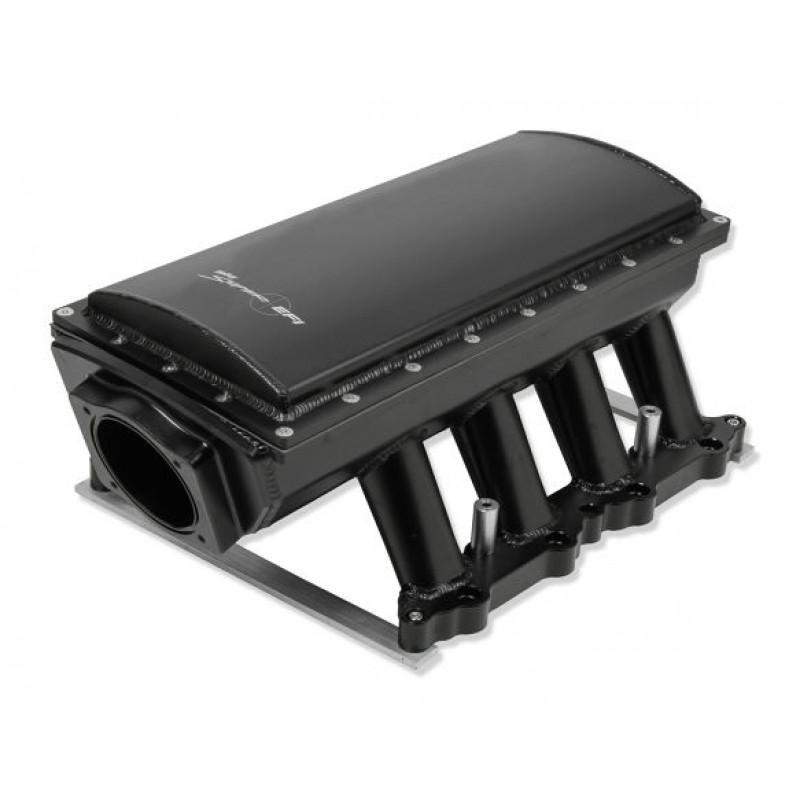

HOLLEY HI-RAM SNIPER RACE SERIES INTAKE MANIFOLD - CATHEDRAL #832142
- Modular Hi–Ram Intake Manifold #832142
Holley 3/8" Fuel Rails
- TB Spacer
Holley Sniper EFI Fabricated Manifolds continues to push the aftermarket by introducing their latest Race Series line of intakes for GM LS1/LS2/LS6 and Ford Coyote 5.0L engine platforms. Feedback from racers and install shops, related to their original line of EFI intakes launched in 2015, were critical in the development of these Race Series manifolds. These Intakes are more robust, good looking, perform above and beyond the original Sniper EFI series of intakes, and offer a very competitive alternative to much higher priced offerings in the marketplace making for a compelling value for those in the market for a high-performance sheet metal style intake manifold. Each manifold is ready to bolt on out of the box and are designed to accept their Sniper high-flow throttle bodies and include high flow fuel rail kit, TB Spacer, and a removable top. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.
- 5mm (13/64") thick T6061 Sheet Aluminum construction, strong and durable for high horsepower and boosted conditions
- Offered with a 90mm bore Throttle Body Opening
- 100% TIG welded
- Intakes include TB spacer, and 3/8" Fuel rail kits with -8AN fittings and crossover braided line capable of supporting 750+ horsepower (laser engraved Sniper logo)
- Equal runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
- Removable top for ease of inspection, modification, and addition of sensors
- Choice of bright silver or black anodized finish
- Welded seams inside and out for added strength and durability on high horsepower, max-effort engines and boosted applications
- Larger Intake plenum vs. standard Sniper EFI manifolds for max effort engines and boosted applications
- Longer Intake runner lengths offering a wider RPM operating range of 2100-8200 RPM
||Gen III/Gen IV
|Throttle Body Port
|RPM Power Band
Installation Notes: These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration. Top can be mounted forward or backward.
NOTE: The EFI versions of the LS Hi-Ram intake manifold and fuel rail are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors. OE LS fuel injectors may not fit properly in the Hi-Ram EFI intake manifold fuel rail assembly without the use of height adapters.
