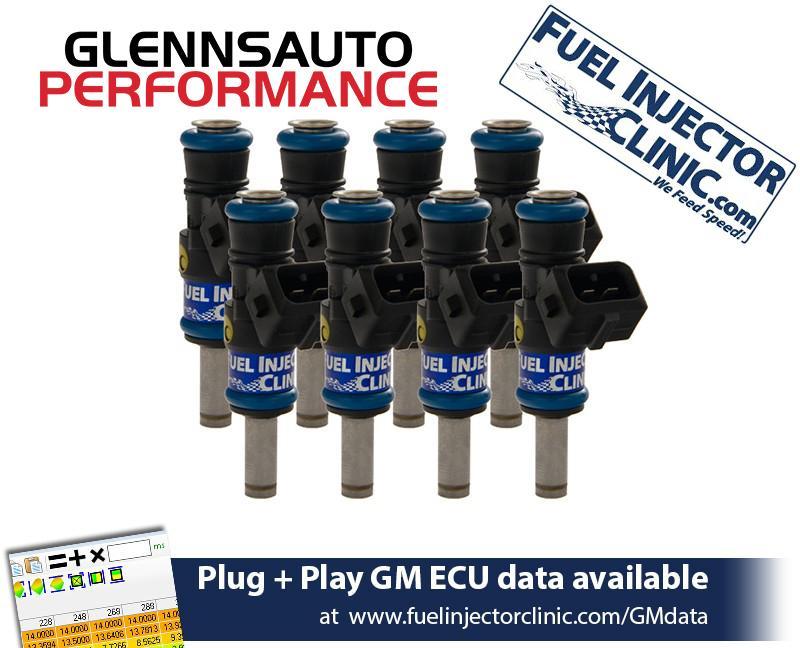

FIC 850cc Fuel Injectors for LS3/L99/L76/LS7
Set of 8 - LS3/L99/L76/LS7 Height Fuel Injector Clinic Fuel Injectors. Saturated / High Impedance Injectors. Includes pigtails PGTJETR8.
850cc/min (81lbs/hr) at 43.5psi (3 bar)
980cc/min (94lbs/hr) at OE 58psi (4 bar)
Features:
- These injectors utilize the latest technology and provide great linearity and short pulse width repeatability.
- Plug and Play GM ECU Data.
- Fuel Injector Clinic injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set.
- Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.
- Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.
- Fuel Injector Clinic injectors are set up and include all o-rings needed to fit the factory application for the listed vehicle.
- Every injector is covered against failure caused by defects in original manufacture by Fuel Injector Clinic's lifetime warranty.
HP Rating
| Cylinder Quantity |
8 |
| Impedance |
High-Z |
| WHP on Gas at 43.5psi 90%DC Turbo |
854.86 |
| WHP on Gas at 58psi 90%DC Turbo |
987.36 |
| WHP on E85 at 43.5psi 90%DC Turbo |
657.58 |
| WHP on E85 at 58psi 90%DC Turbo |
759.51 |
| WHP on Gas at 43.5psi 90%DC NA |
1025.83 |
| WHP on Gas at 58psi 90%DC NA |
1184.83 |
| WHP on E85 at 43.5psi 90%DC NA |
789.10 |
| Fuel Pressure (psi) |
58 |
| Part Number |
IS303-0850H |
| Part Type |
Fuel Injector |
| Brand |
Fuel Injector Clinic (FIC) |
| Height |
LS3/L99/L76/LS7 |
| Flow Rate @ 43.5 psi |
850cc/min (81lb/hr) |
| Flow Rate @ 58 psi |
980cc/min (94lb/hr) |
| Connector Style |
EV1 |
| Quantity |
Set of 8 |
*Item ships directly from vendor.
