FUEL INJECTOR CLINIC - 540cc - LS3/L99/L76/LS7 IS303-0540H
FUEL INJECTOR CLINIC - 540cc - LS3/L99/L76/LS7 IS303-0540H

FUEL INJECTOR CLINIC - 540cc - LS3/L99/L76/LS7 IS303-0540H

$563.50

🚚 FREE SHIPPING*

PRODUCT DETAILS

FIC 540cc Fuel Injectors for LS3/L99/L76/LS7

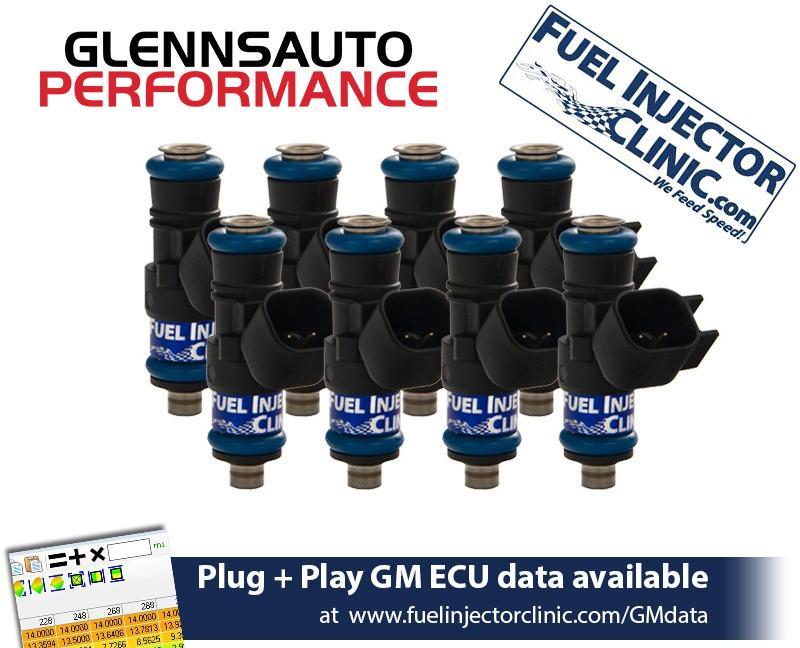

Set of 8 - LS3/L99/L76/LS7 Height Fuel Injector Clinic Fuel Injectors. Saturated / High Impedance Injectors.


540cc/min (52lbs/hr) at 43.5psi (3 bar)

625cc/min (60lbs/hr) at OE 58psi (4 bar)


Features:

  • These injectors utilize the latest technology and provide great linearity and short pulse width repeatability.
  • Plug and Play GM ECU Data.
  • Fuel Injector Clinic injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set.
  • Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.
  • Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.
  • Fuel Injector Clinic injectors are set up and include all o-rings needed to fit the factory application for the listed vehicle.
  • Every injector is covered against failure caused by defects in original manufacture by Fuel Injector Clinic's lifetime warranty.



HP Rating

Cylinder Quantity 8
Impedance High-Z
WHP on Gas at 43.5psi 90%DC Turbo 524.57
WHP on Gas at 58psi 90%DC Turbo 605.88
WHP on E85 at 43.5psi 90%DC Turbo 403.52
WHP on E85 at 58psi 90%DC Turbo 466.06
WHP on Gas at 43.5psi 90%DC NA 629.49
WHP on Gas at 58psi 90%DC NA 727.06
WHP on E85 at 43.5psi 90%DC NA 484.22
Fuel Pressure (psi) 58



Part Number IS303-0540H
Part Type Fuel Injector
Brand Fuel Injector Clinic (FIC)
Height LS3/L99/L76/LS7
Flow Rate @ 43.5 psi 540cc/min (52lb/hr)
Flow Rate @ 58 psi 625cc/min (60lb/hr)
Connector Style  EV6/USCAR
Quantity Set of 8



*Item ships directly from vendor.
