FUEL INJECTOR CLINIC - 525cc - LS2 IS302-0525H
FUEL INJECTOR CLINIC - 525cc - LS2 IS302-0525H

FUEL INJECTOR CLINIC - 525cc - LS2 IS302-0525H

$539.00

🚚 FREE SHIPPING*

PRODUCT DETAILS

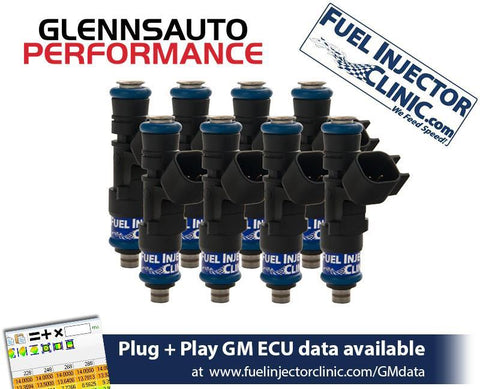

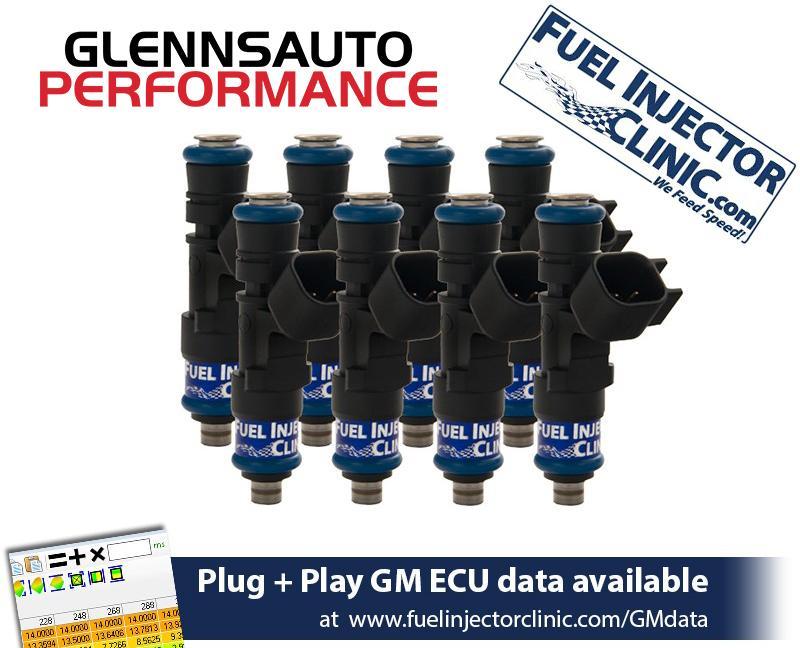

FIC 525cc Fuel Injectors for LS2 Height Applications

Set of 8 - LS2 Height Fuel Injector Clinic Fuel Injectors. Saturated / High Impedance Injectors.


525cc/min (50lbs/hr) at 43.5psi (3 bar)

600cc/min (58lbs/hr) at OE 58psi (4 bar)


Features:

  • These injectors utilize the latest technology and provide great linearity and short pulse width repeatability.
  • Plug and Play GM ECU Data.
  • Fuel Injector Clinic injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set.
  • Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.
  • Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.
  • Fuel Injector Clinic injectors are set up and include all o-rings needed to fit the factory application for the listed vehicle.
  • Every injector is covered against failure caused by defects in original manufacture by Fuel Injector Clinic's lifetime warranty.

HP Rating

Cylinder Quantity 8
Impedance High-Z
WHP on Gas at 43.5psi 90%DC Turbo 510.00
WHP on Gas at 58psi 90%DC Turbo 589.05
WHP on E85 at 43.5psi 90%DC Turbo 392.31
WHP on E85 at 58psi 90%DC Turbo 453.12
WHP on Gas at 43.5psi 90%DC NA 612.00
WHP on Gas at 58psi 90%DC NA 706.86
WHP on E85 at 43.5psi 90%DC NA 470.77
Fuel Pressure (psi) 58



Part Number IS302-0525H
Part Type Fuel Injector
Brand Fuel Injector Clinic (FIC)
Height LS2
Flow Rate @ 43.5 psi 525cc/min (50lb/hr)
Flow Rate @ 58 psi 600cc/min (58lb/hr)
Connector Style  EV6/USCAR
Quantity Set of 8



*Item ships directly from vendor.
