FUEL INJECTOR CLINIC - 365cc - LS2 IS302-0365H
FUEL INJECTOR CLINIC - 365cc - LS2 IS302-0365H

FUEL INJECTOR CLINIC - 365cc - LS2 IS302-0365H

$609.00

🚚 FREE SHIPPING*

PRODUCT DETAILS

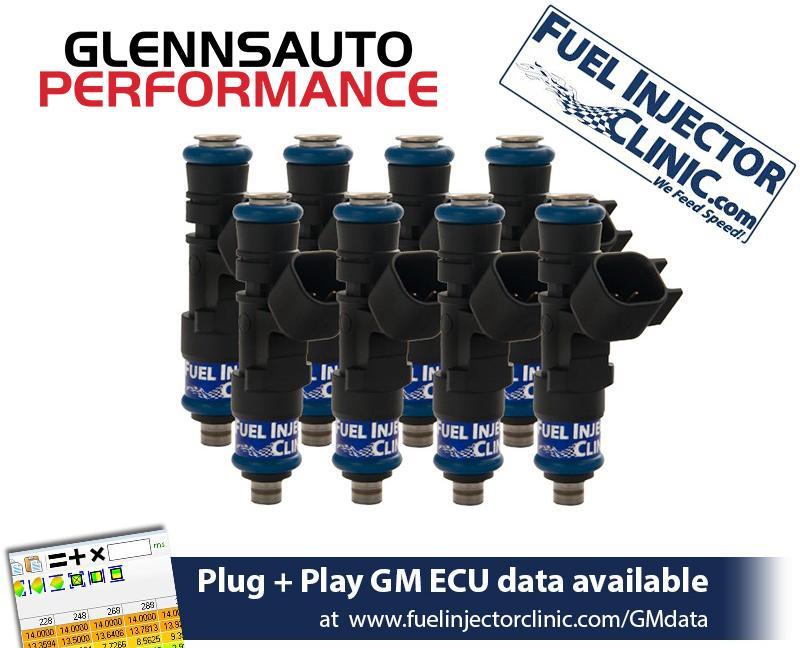

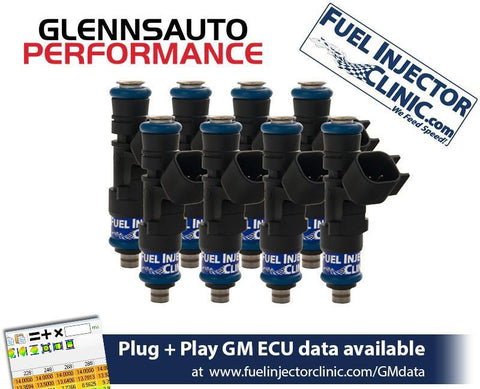

FIC 365cc Fuel Injectors for LS2 Height Applications

Set of 8 - LS2 Height Fuel Injector Clinic Fuel Injectors. Saturated / High Impedance Injectors.


365cc/min (35lbs/hr) at 43.5psi (3 bar)

420cc/min (40lbs/hr) at OE 58psi (4 bar)


Features:

  • These injectors utilize the latest technology and provide great linearity and short pulse width repeatability.
  • Plug and Play GM ECU Data.
  • Fuel Injector Clinic injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set.
  • Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.
  • Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.
  • Fuel Injector Clinic injectors are set up and include all o-rings needed to fit the factory application for the listed vehicle.
  • Every injector is covered against failure caused by defects in original manufacture by Fuel Injector Clinic's lifetime warranty.

HP Rating

Cylinder Quantity 8
Impedance High-Z
WHP on Gas at 43.5psi 90%DC Turbo 354.57
WHP on Gas at 58psi 90%DC Turbo 409.53
WHP on E85 at 43.5psi 90%DC Turbo 272.75
WHP on E85 at 58psi 90%DC Turbo 315.02
WHP on Gas at 43.5psi 90%DC NA 425.49
WHP on Gas at 58psi 90%DC NA 491.44
WHP on E85 at 43.5psi 90%DC NA 327.30
Fuel Pressure (psi) 58



Part Number IS302-0365H
Part Type Fuel Injector
Brand Fuel Injector Clinic (FIC)
Height LS2
Flow Rate @ 43.5 psi 365cc/min (35lb/hr)
Flow Rate @ 58 psi 420cc/min (40lb/hr)
Connector Style  EV6/USCAR
Quantity Set of 8
