FIC 2150cc Fuel Injectors for LS2 Height Applications

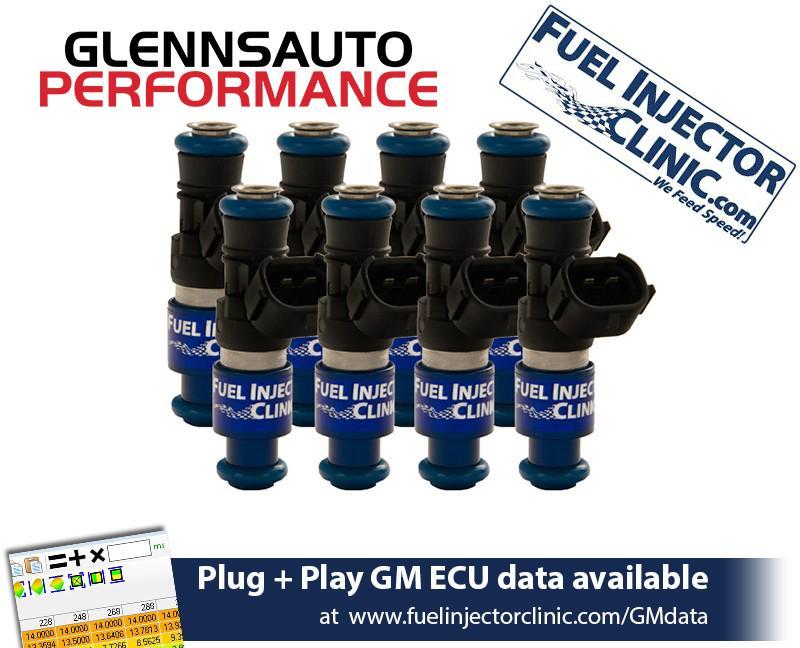

Set of 8 - LS2 Height Fuel Injector Clinic Fuel Injectors. Saturated / High Impedance Injectors. Includes Pigtail #PGTDEN8.

2150cc/min (200lbs/hr) at 43.5psi (3 bar)

2500cc/min (240lbs/hr) at OE 58psi (4 bar)


  • These injectors utilize the latest technology and provide great linearity and short pulse width repeatability.
  • Plug and Play GM ECU Data.
  • Fuel Injector Clinic injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set.
  • Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.
  • Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.
  • Fuel Injector Clinic injectors are set up and include all o-rings needed to fit the factory application for the listed vehicle.
  • Every injector is covered against failure caused by defects in original manufacture by Fuel Injector Clinic's lifetime warranty.
NOTE: This set of injectors may require you to change the injector plug on the wiring harness or utilize an adapter harness on your vehicle depending on your original injector plug style. This can be done by soldering in the pigtails (included with purchase) to replace the plugs currently on your harness, or you can choose to purchase plug-n-play adapters which will convert from the type of plugs on these injectors to the plugs on your harness without any need for cutting or soldering.


NOTE: FIC does not recommend using MTBE oxygenated fuels with 2150cc injectors.

HP Rating

Cylinder Quantity 8
Impedance High-Z
WHP on Gas at 43.5psi 90%DC Turbo 2088.57
WHP on Gas at 58psi 90%DC Turbo 2412.30
WHP on E85 at 43.5psi 90%DC Turbo 1606.59
WHP on E85 at 58psi 90%DC Turbo 1855.62
WHP on Gas at 43.5psi 90%DC NA 2506.29
WHP on Gas at 58psi 90%DC NA 2894.76
WHP on E85 at 43.5psi 90%DC NA 1927.91
Fuel Pressure (psi) 58


Part Number IS302-2150H
Part Type Fuel Injector
Brand Fuel Injector Clinic (FIC)
Height LS2
Flow Rate @ 43.5 psi 2150cc/min (200lb/hr)
Flow Rate @ 58 psi 2500cc/min (240lb/hr)
Connector Style  Denso
Quantity Set of 8


*Item ships directly from vendor.
