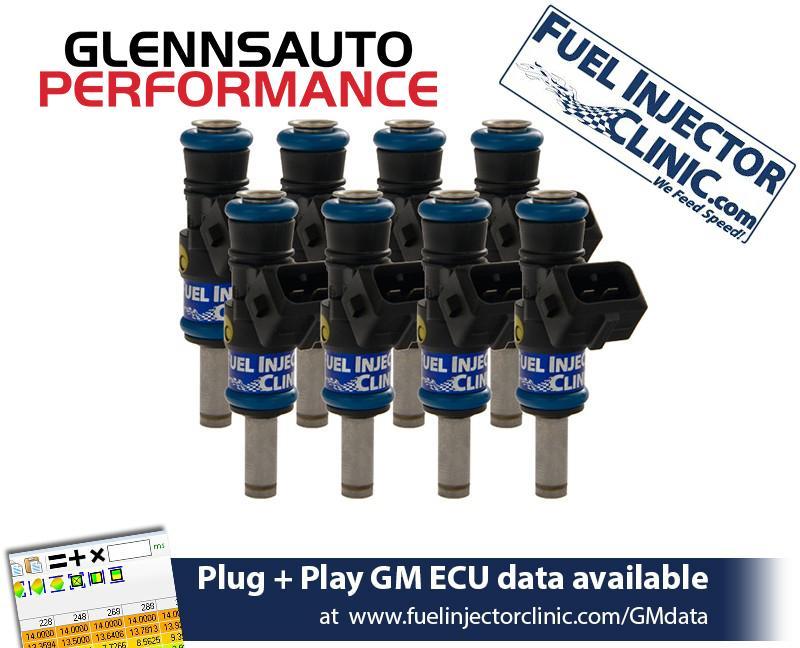

FIC 1200cc Fuel Injectors for LS3/L99/L76/LS7

Set of 8 - LS3/L99/L76/LS7 Height Fuel Injector Clinic Fuel Injectors. Saturated / High Impedance Injectors. Includes pigtails PGTJETR8.


1200cc/min (110lbs/hr) at 43.5psi (3 bar)

1350cc/min (130lbs/hr) at OE 58psi (4 bar)


Features:

  • These injectors utilize the latest technology and provide great linearity and short pulse width repeatability.
  • Plug and Play GM ECU Data.
  • Fuel Injector Clinic injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set.
  • Fuel Injector Clinic injectors are flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.
  • Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.
  • Fuel Injector Clinic injectors are set up and include all o-rings needed to fit the factory application for the listed vehicle.
  • Every injector is covered against failure caused by defects in original manufacture by Fuel Injector Clinic's lifetime warranty.

HP Rating

Cylinder Quantity 8
Impedance High-Z
WHP on Gas at 43.5psi 90%DC Turbo 1117.14
WHP on Gas at 58psi 90%DC Turbo 1290.30
WHP on E85 at 43.5psi 90%DC Turbo 859.34
WHP on E85 at 58psi 90%DC Turbo 992.54
WHP on Gas at 43.5psi 90%DC NA 1340.57
WHP on Gas at 58psi 90%DC NA 1548.36
WHP on E85 at 43.5psi 90%DC NA 1031.21
Fuel Pressure (psi) 58



Part Number IS303-1200H
Part Type Fuel Injector
Brand Fuel Injector Clinic (FIC)
Height LS3/L99/L76/LS7
Flow Rate @ 43.5 psi 1200cc/min (110lb/hr)
Flow Rate @ 58 psi 1350cc/min (130lb/hr)
Connector Style  EV1
Quantity Set of 8
