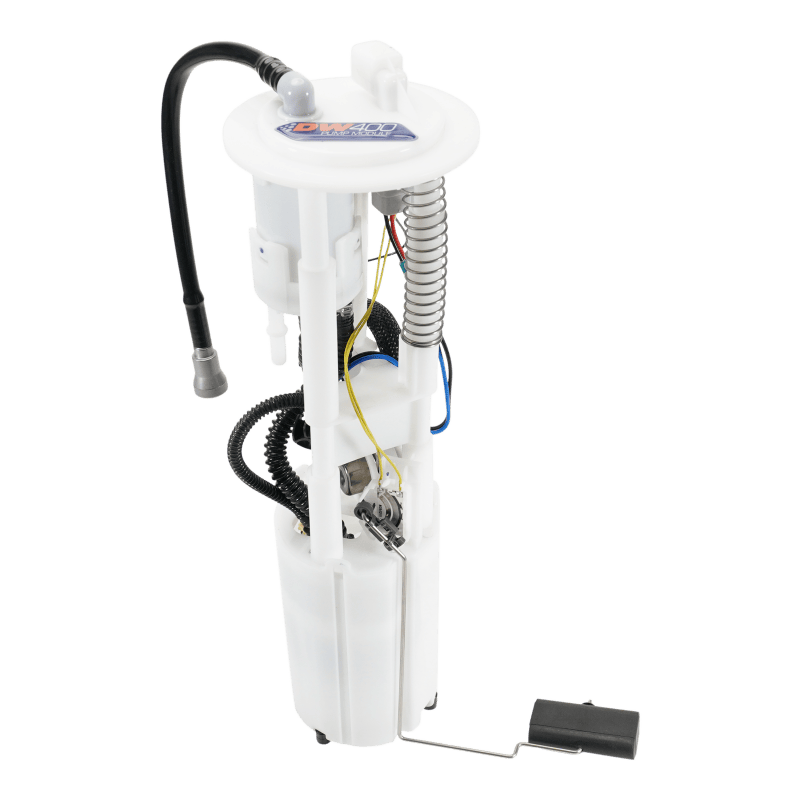

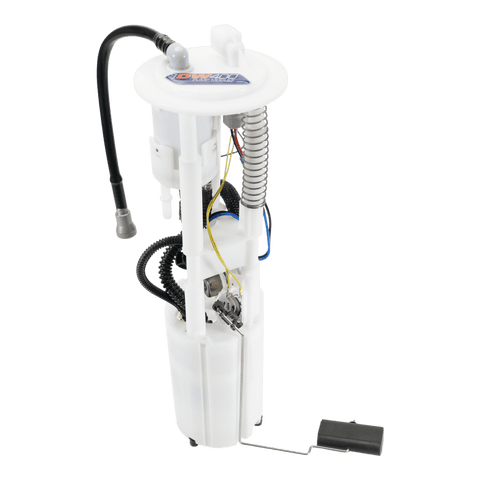

The DeatschWerks DW400 Performance Module for the 2007-2013 Chevrolet Corvette features a DW fuel pump and includes integration of the OEM returnless fuel line and retention of ALL the functionality of the factory module. The module consists of a top-hat, center section, and lower bucket. These components work together to deliver the flow
you need and the OEM functionality you want.

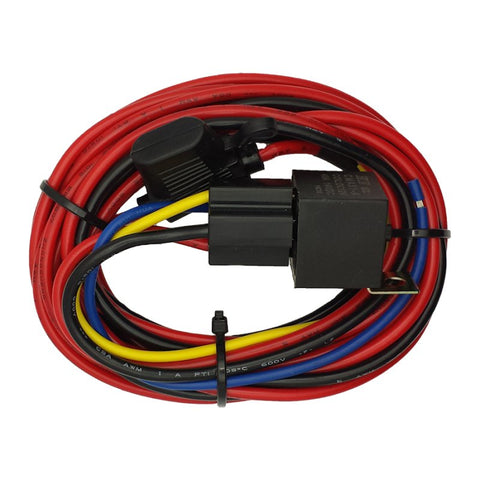

Note : To ensure maximum voltage at the pump, a 12-gauge hardwire kit is strongly recommended for optimum performance. (DeatschWerks PN# FPHWK)
Key Features:
- OEM Tank Fitment
- Keeps OEM Level Sensor, Capacity and Surge Features
- Factory Returnless Compatible, No Plumbing Required
- Supports up to 800hp on Gasoline
- 34% Flow Over OEM Corvette Module
- Brand new OE quality module and Ethanol compatible filter
- Full replacement module reduces install time
- Factory Plug and Play Operation
Vehicle Applications:
- 2007-2013 Chevrolet Corvette C6 LS2/LS3
- 2007-2013 Chevrolet Corvette C6 Z06 LS7
- 2006-2009 Cadillac XLR-V LC3 (4.4L Supercharged)
Specifications:
- Material : Polyoxymethylene (POM)
- Feed Fitting: OE 3/8" Female EFI Quick Connect
- Working Pressure: Up to 60psi (415 kPa)
- Flow At 58 PSI: 330 LPH (1.46 GPM)
- Draw At 58 PSI: 17 Amps (230 Watts)
NOTE: Does not fit 2003-2006 models due to Level Sensor values being different. Does not fit ZR1 Supercharged models.
