Grind # XA224/350-XA238/345-18+4
Street Performance
Duration at .050: 224/238
118 Lobe Center Angle with a 114 Degree Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .595"/.587"
Recommended Compression Ratio: 8.5:1-10.0:1
Recommended Headers: 1 3/4" - 1 7/8"
Recommended Stall Converter: Stock - 3500 RPM
Recommended Rear Axle Ratio: Stock - 3.73

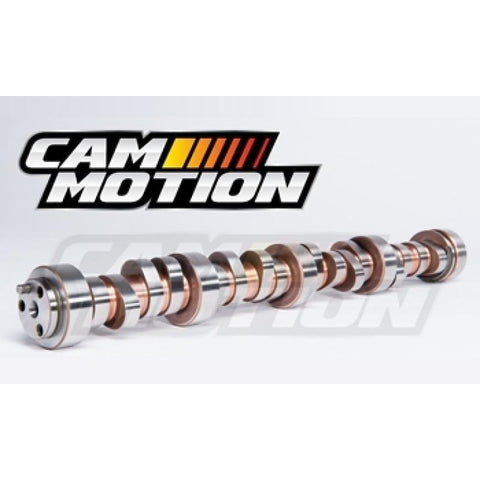

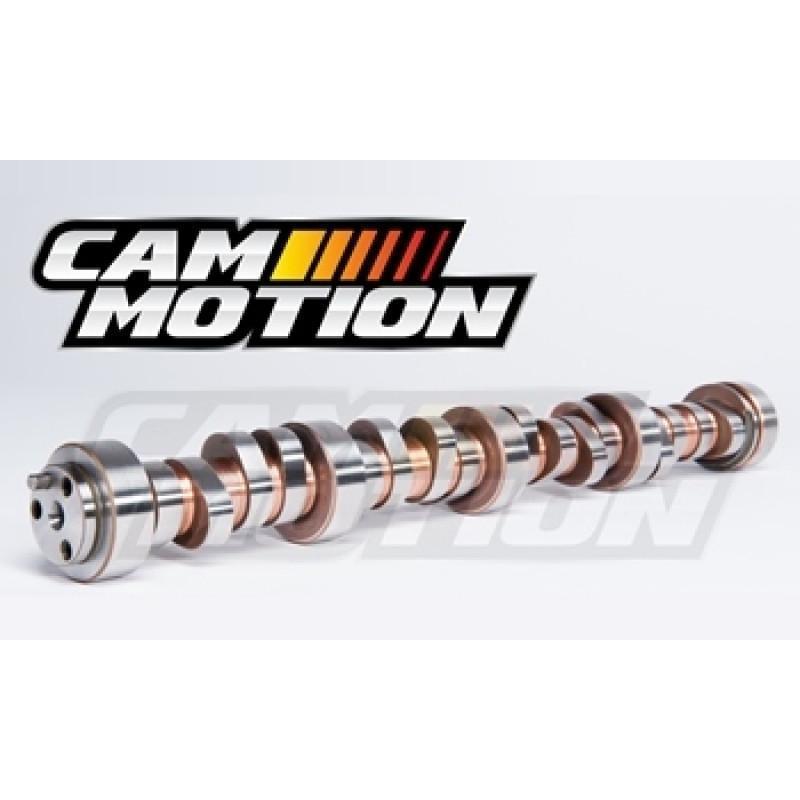

The PDS 224/238 positive displacement supercharger LS camshaft is designed for street performance applications in vehicles using 5.3L, 6.0L, and 6.2L LS engines equipped with positive-displacement style superchargers.
The PDS 224/238 Supercharger Camshaft will have a mild performance idle and improved power through the mid-range and upper RPM with emphasis on mid-range power and torque. This camshaft can be used in a completely stock vehicle with just a valve spring and pushrod upgrade. Additional performance gains can be appreciated when used with headers, an increased stall speed torque converter, free flowing exhaust and intake systems.
Supercharger series cams are designed with Cam Motion's renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.
Part Number |
03-01-0053 |
Cam Type |
Supercharged |
Brand |
Cam Motion |
Engine Type |
Gen III/Gen IV |
Cam Style |
Hydraulic Roller |
Lift |
.595/.587 |
Duration |
224/238 |
Lobe Separation Angle |
118 |
*Item ships directly from vendor.
