Grind # XA227/365-XA237/355-13+3.5

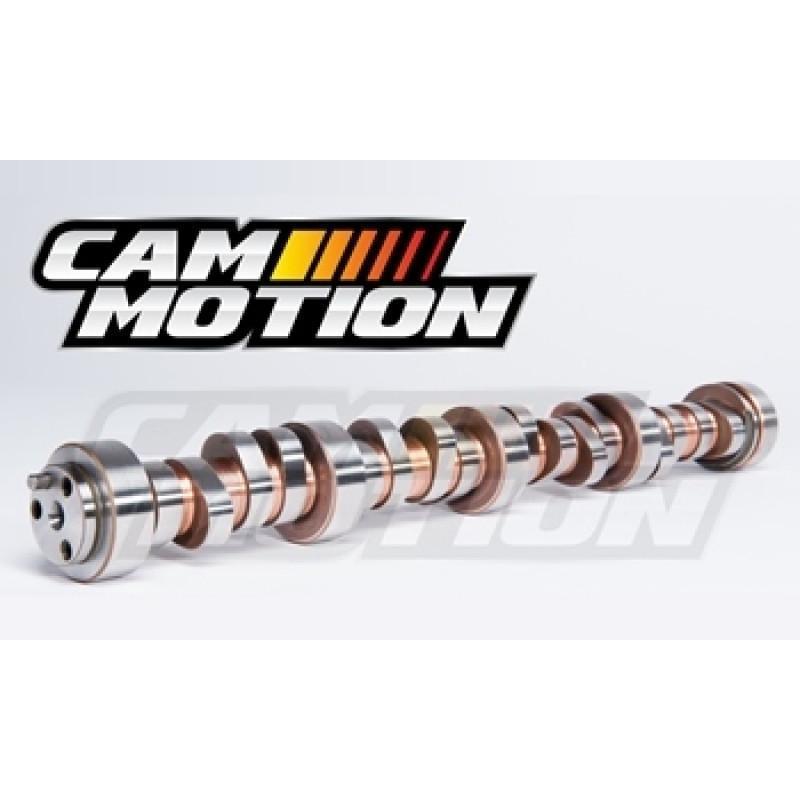

Hydraulic Roller Camshaft
Aggressive Street Performance
Duration at .050": 227/237
113 Lobe Center Angle with a 109.5 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .621"/.604"
Cylinder Heads: Rectangle Port
Recommended Compression Ratio: 10.0-11.5:1
Recommended Headers: 1 3/4" - 1 7/8"
Recommended Stall Converter: 2800-4000
Recommended Rear Axle Ratio: 3.42-4.30
*Designed for factory style, or high flow aftermarket long runner intake manifolds.
The TITAN III LS3 camshaft is designed for aggressive street performance in cars using 6.0-6.2 liter LS engines equipped with rectangular port, LS3/L99/L92 style heads. The TITAN III LS3 will have a light lope to the idle and strong midrange to upper RPM power. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust and increased stall speed torque converter, high flow intake systems and increased rear axle ratios.
If you are looking for an aggressive performance cam that you can daily drive or race at the track, this camshaft is a great choice.
The TITAN series cams are designed with Cam Motion's renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.Â
Â
| Part Number |
03-01-0018 |
| Cam Type |
Naturally Aspirated |
| Brand |
Cam Motion |
| Engine Type |
Gen III/Gen IV |
| Cam Style |
Hydraulic Roller |
| Lift |
.621/.604 |
| Duration |
227/237 |
| Lobe Separation Angle |
113 |
Â
*Item ships directly from vendor.
