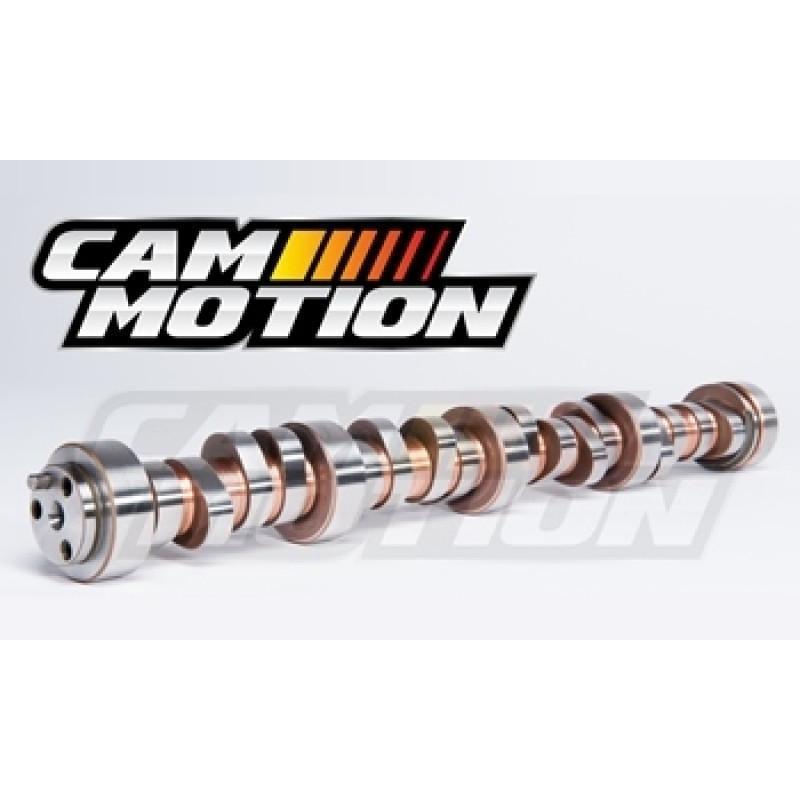

CAM MOTION LS3 CAM - TITAN II - 03-01-0017
CAM MOTION LS3 CAM - TITAN II - 03-01-0017

CAM MOTION LS3 CAM - TITAN II - 03-01-0017




Grind # XA222/350-XA230/345-13+3
Hydraulic Roller Camshaft
Mild Street Performance
Duration at .050": 222/230
113 Lobe Center Angle with a 110 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .595"/.587"

Cylinder Heads: Rectangle Port
Recommended Compression Ratio: 9.5-11.0:1
Recommended Headers: 1 3/4" - 1 7/8"
Recommended Stall Converter: 2400-3600
Recommended Rear Axle Ratio: 3.42-4.11
*Designed for factory style, or high flow aftermarket long runner intake manifolds.

The TITAN 2 LS3 camshaft is designed for street performance in cars using 6.0-6.2 liter LS engines equipped with rectangular port, LS3/L99/L92 style heads. The TITAN II LS3 will have a slight performance idle and improved power throughout the RPM range with emphasis on mid-range to upper mid-range power and torque. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust and increased stall speed torque converter. Vehicles using this cam will also benefit from high flow intake systems and in some applications, increased rear axle ratios.

The TITAN series cams are designed with Cam Motion's renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.


Part Number 03-01-0017
Cam Type Naturally Aspirated
Brand Cam Motion
Engine Type Gen III/Gen IV
Cam Style Hydraulic Roller
Lift .595/.587
Duration 222/230
Lobe Separation Angle 113


*Item ships directly from vendor.
