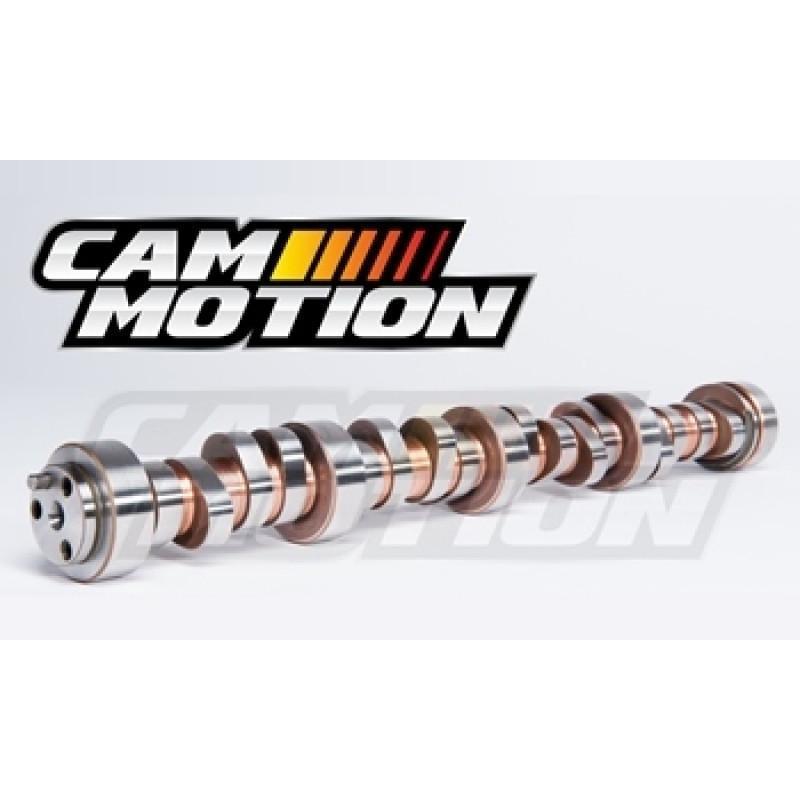

CAM MOTION LS1/LS2 CAM - TITAN III - CM0012
CAM MOTION LS1/LS2 CAM - TITAN III - CM0012

CAM MOTION LS1/LS2 CAM - TITAN III - CM0012

$399.00

🚚 FREE SHIPPING*

PRODUCT DETAILS

Grind # XA224/355-XA228/350-13+4
Hydraulic Roller Camshaft
Aggressive Street Performance
Duration at .050": 224/228
113 Lobe Center Angle with a 109 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .603"/.595"


Cylinder Heads: Cathedral Port
Recommended Compression Ratio: 9.4-11.0:1
Recommended Headers: 1 3/4"
Recommended Stall Converter: 2500-3500
Recommended Rear Axle Ratio: Stock-4.11
*Designed for factory style, or high flow aftermarket long runner intake manifolds.

The TITAN 3 LS1/LS2 camshaft is designed for street performance in cars using 5.3L, 6.0L, and 6.2L LS engines equipped with cathedral port, LS1/LS2 style heads. The TITAN III LS1/LS2 will have a light performance idle and strong midrange to upper midrange power. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust and increased stall speed torque converter, high flow intake systems and increased rear axle ratios.

The TITAN series cams are designed with Cam Motion's renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.



Part Number CM0012
Cam Type Naturally Aspirated
Brand Cam Motion
Engine Type Gen III/Gen IV
Cam Style Hydraulic Roller
Lift .603/.595
Duration 224/228
Lobe Separation Angle 113



*Item ships directly from vendor.
