Grind # XA232/365-XA244/355-11+4
Aggressive Street / Street-Strip
Duration at .050: 232/244
111 Lobe Center Angle with a 107 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .621"/.604"
Cylinder Heads: Cathedral Port
Recommended Compression Ratio: 9.4-11.5:1
Recommended Headers: 1 3/4" - 1 7/8"
Recommended Stall Converter: 3000-4500
Recommended Rear Axle Ratio: 3.73-4.56
*This camshaft is specifically designed for use with single plane intake manifolds such as Victor, Hi-Ram, Mid-Ram and GMPP intakes.

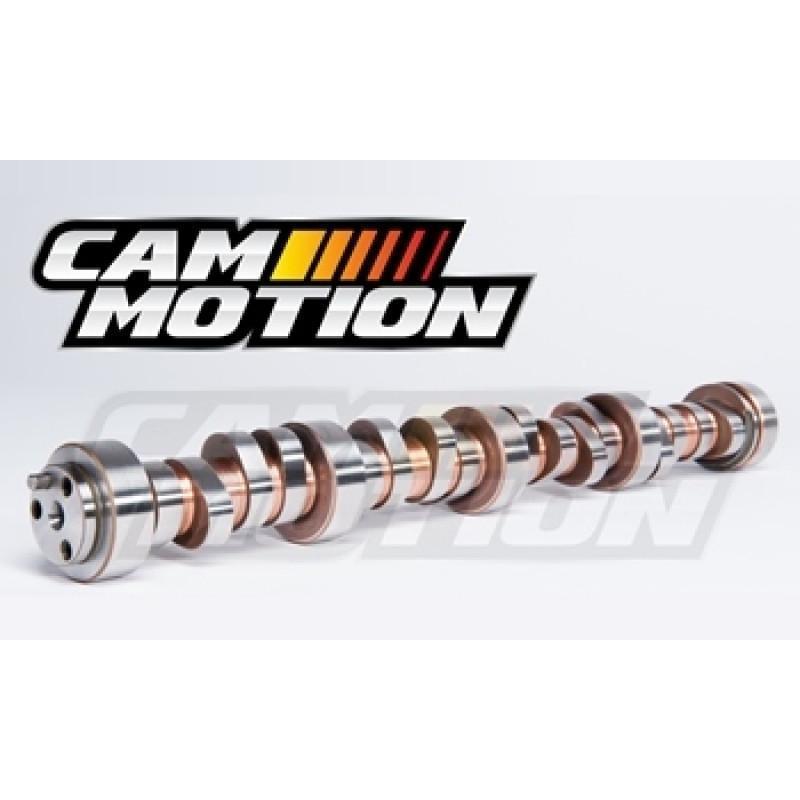

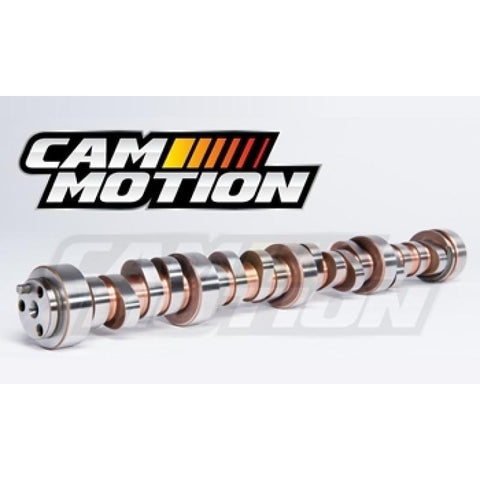

The Junkyard Dog "Single Plane" Cathedral V1 Port cam is an aggressive and powerful camshaft created for aggressive street performance and street-strip applications where a carburetor or single plane intake manifold is used with cathedral port heads. This camshaft is an excellent choice for enthusiasts who want to hotrod or race a stock short block. This camshaft is designed to get maximum performance out of a single plane equipped 5.7L, 6.0L, and 6.2L stock short blocks while still maintaining acceptable valve clearance without fly-cutting the pistons in cathedral port headed engines. However, it is still the owner's/engine builder's responsibility to verify sufficient clearance during installation. Also, milling of the heads, installing a thinner head gasket or installing larger diameter valves will reduce your piston to valve clearance. The Junkyard Dog Single Plane Camshaft has a very lopey idle. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust, increased stall speed torque converter and increased rear axle ratios.
The The Junkyard Dog Single Plane cam is designed with Cam Motion's renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability.
Â
Part Number |
03-01-0076 |
Cam Type |
Naturally Aspirated |
Brand |
Cam Motion |
Engine Type |
Gen III/Gen IV |
Cam Style |
Hydraulic Roller |
Lift |
.621/.604 |
Duration |
232/244 |
Lobe Separation Angle |
111+4 |
Â
*Item ships directly from vendor.
