BTR GEN 5 2014+ DOD Delete Kit w/ BTR Gen V LT1/LT4 Cam Package

BTR GEN V 2014+ DOD Delete Kit w/ BTR Gen V LT1/LT4 Cam Package


BTR's Complete AFM/DOD delete kit includes the necessary components to delete the problematic DOD system on your 2014+ Gen V GM Car. The Brian Tooley Racing Gen V DOD delete kit will allow you to remove DOD/AFM from your Gen V 6.2L LT1, LT4, or L86 engine. This is a perfect kit for when you're looking to install an aftermarket cam package or simply replace the failure-prone AFM lifters.

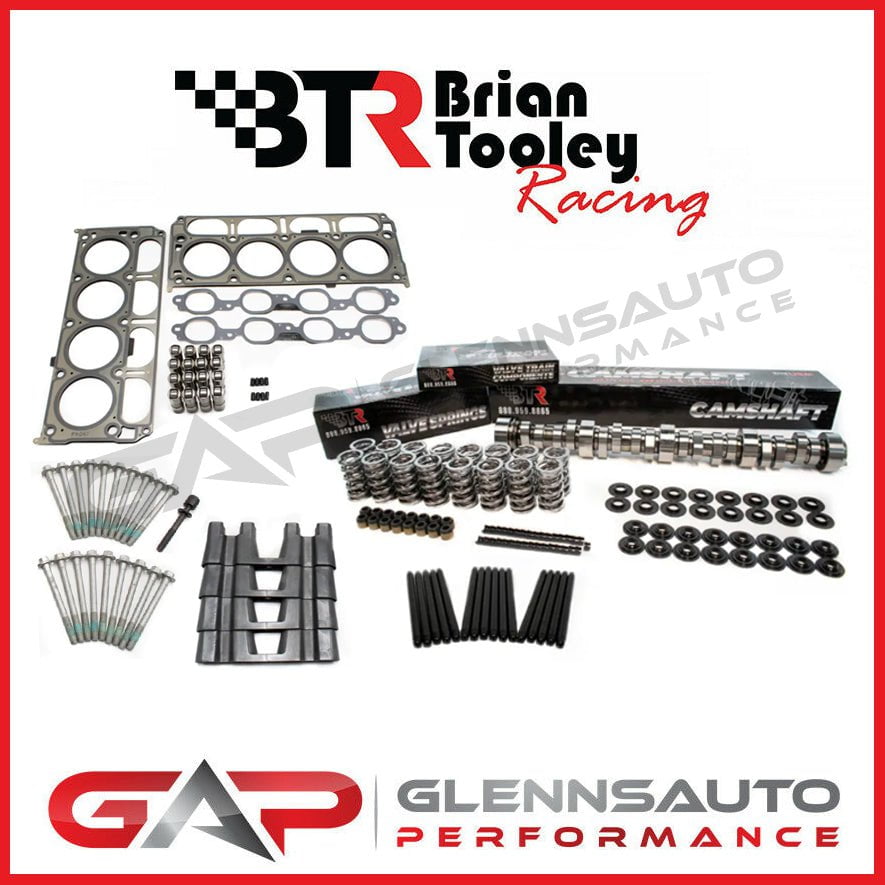

DOD Delete Kit Includes:

• 8 DOD Plugs to Block Off the DOD Stacks
• GM Gen V Head Bolt Kit
• Four Lifter Trays
• Full Set of 16 LS7 Style Lifters
• Pair of GM Gen V Head Gaskets (LT1 or LT4)
• Pair of Gen V Header Gaskets



BTR Camshaft Package Includes:

• BTR GEN V Camshaft of Your Choice
• BTR GEN V Platinum .660" Dual Spring Kit (LT1-SK007/LT4-SK008)
• 7.850" Hardened Chromoly Pushrods
• BTR 4 DEGREE PHASER LIMITER BLOCK



 Camshaft Specs:

• GEN V 220 Cam: 220/23X .644"/.644" 113 LSA +32% Fuel Lobe
• GEN V 225 Cam: 225/24X .644"/.644" 113 LSA +32% Fuel Lobe
• GEN V 230 Cam: 230/24X .644"/.644" 112 LSA +32% Fuel Lobe
• GEN V Stage 1 TURBO Cam: 215/23X .639"/.639" 112.5 LSA +38% Fuel Lobe

• GEN V Stage 2 TURBO Cam: 221/23X .639"/.639" 112.5 LSA +38% Fuel Lobe
• GEN V Stage 1 SUPERCHARGED Cam: 217/23X .639"/.639" 114 LSA +38% Fuel Lobe
• GEN V Stage 2 SUPERCHARGED Cam: 223/24X .639"/.639" 114 LSA +38% Fuel Lobe
• GEN V Stage 3 SUPERCHARGED Cam: 228/25X .639"/.639" 113 LSA +38% Fuel Lobe



NOTE: These cams are designed for non-AFM applications. Tuning is required when disabling the DOD/AFM system. Will NOT fit Gen 4 "LS" applications!

NOTE: Stage 3 supercharged cam and 230 cam will require flycutting on all Gen V engine applications.
