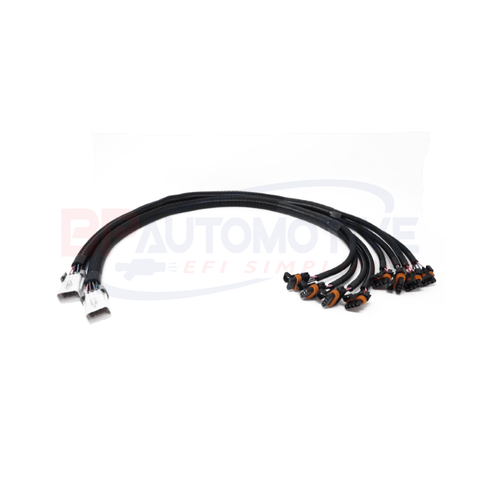

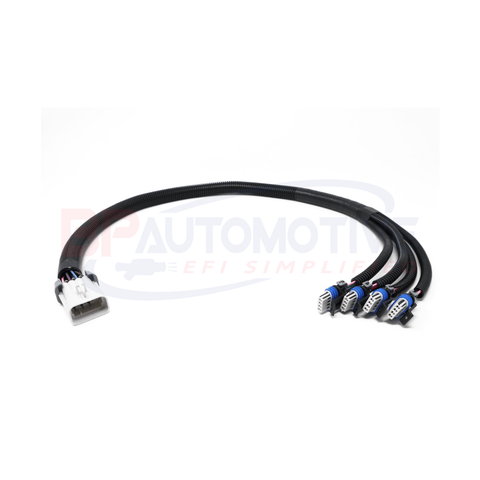

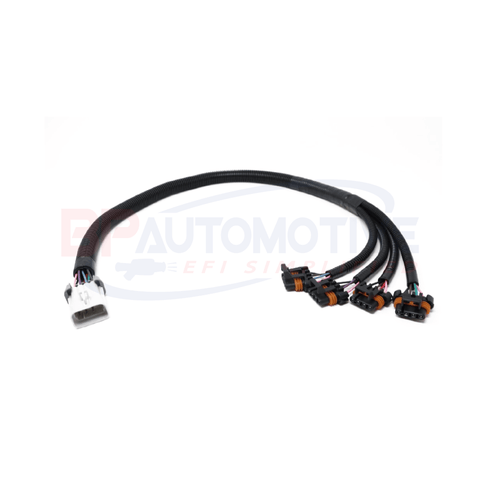

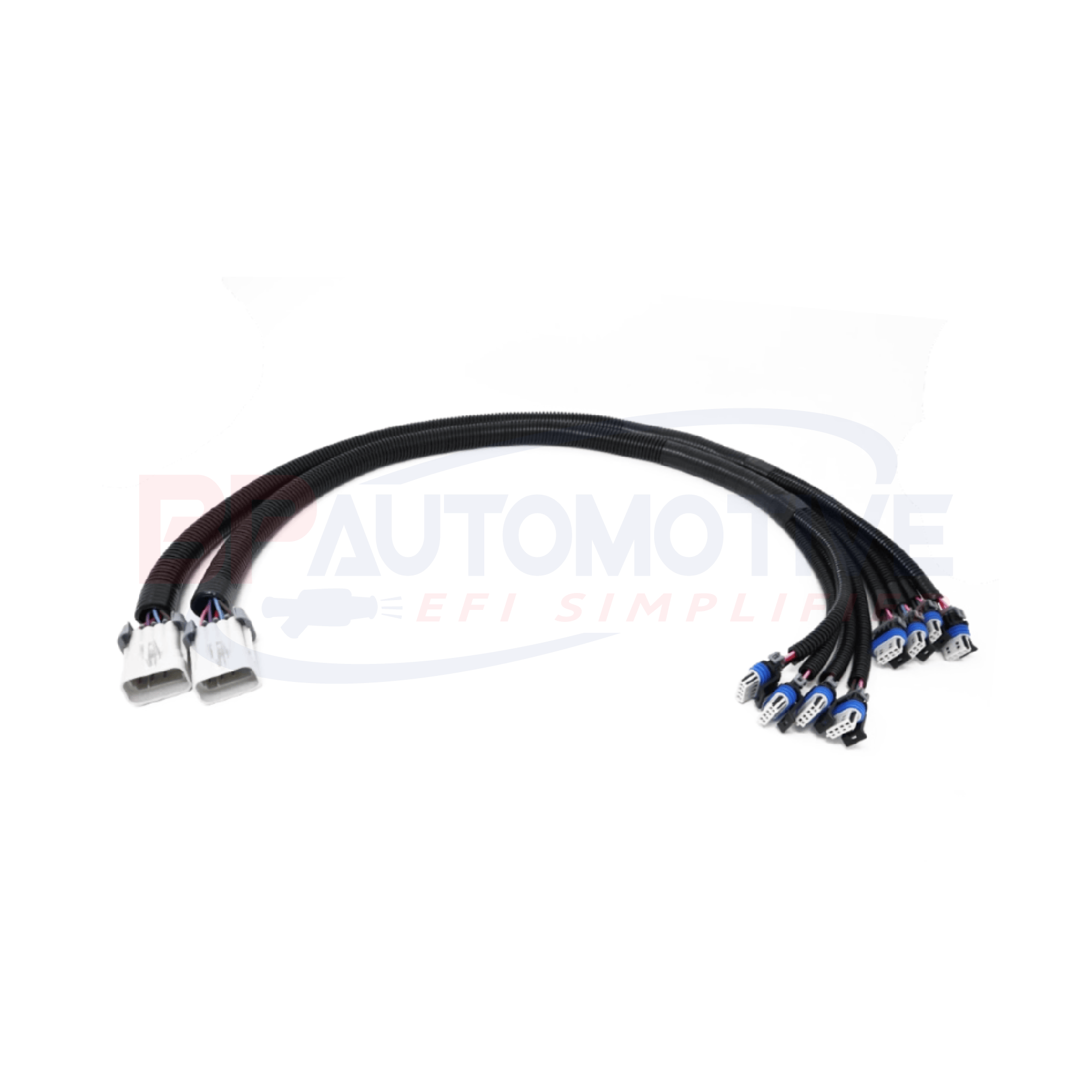

BP Automotive Gen 3/Gen 4 LS Extended Ignition Coil Harness (3 Feet Long)
The BP Automotive coil relocation harness is designed for relocated coil applications where the coils have been moved from the valve covers to another location. These 3 foot harnesses eliminate the need for a coil harness and an extension harness and are a complete ignition coil harness replacement. Sold in pairs (8 cylinders/2 sides) or as a single harness (4 cylinders/1 side).
Features:
- GM color coded TXL wire to meet or exceed OEM standards
- OEM Aptiv (Formerly Delphi) connectors, seals, and terminals
- Ultrasonically Welded splices just like an OEM GM harness
- Production tooling that meets Aptiv standards down to the .1 or .01 MM used for all crimped connections
- 3 foot length gives you plenty of relocation options
Connections Included in this Standalone Harness:
- 1 Main Coil Harness Connector
- 4 Individual Coil Connectors for LS1/LS6 Coils or LS2/LS3/Truck Coils (depending on selection)
- LS1/LS6 Style works with 12558948 or D580 Coils
- LS2/LS3/Truck style works with 12573190, 12611424, 12570616, D510C, D513A, D514A, GN10165, UF-413, UF414, C1512, or 6737104 Coils
Fitment:
- LS2/LS3/Truck: 1999-2013 Chevrolet Truck/VAN/SUV, 2005-2013 Corvette, 2005-2006 GTO, or any LS application utilizing LS2/LS3/Truck Coils
- LS1/LS6 Style: 1998-2002 Camaro/Firebird, 1997-2004 Corvette, 2004 GTO, 2003-2006 CTSV, or any LS application utilizing LS1/LS6 Coils
