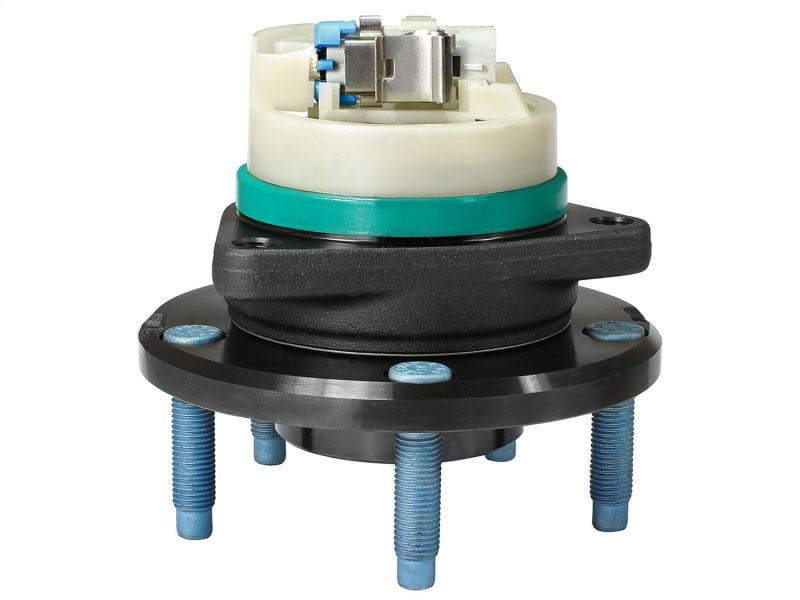

aFe PFADT SKF X-Tracker Front Wheel Bearing/Hub Assembly for 1997-2008 C5/C6 Corvette - 480-401001-A
Fits Front or Rear
aFe Control is proud to release the PFADT Series, SKF performance wheel bearing for 1997-2008 Corvette C5/C6. This performance wheel bearing is designed to improve the performance, cornering and stability characteristics that race and super cars demand. The SKF X-Tracker is a performance-engineered hub unit consisting of a double row angular contact ball bearing arrangement in which the outboard row has a larger diameter and contains more balls than the inboard row. Designed as a direct fit installation, no modifications is necessary.
NOTE: These hubs are designed for 30 spline rear axle applications and will not fit 2008 and later C6 Corvette applications that used 33 spline axles.
Features:
- Improved Steering Accuracy and Dynamic Vehicle Behavior
- Dramatically Increased Durability
- Reduced Caliper Piston Knock-Back and Braking Times
- Non-Symmetrical Rows with Larger Number of Balls at a Higher Diameter on Outboard Side
- Less than 10 Micron Run-Out on Flange Face
- Black Oxide Coating for Improved Corrosion Resistance
- Integrated Speed Sensor for 1997-2008 Corvettes
- Direct Fit Installation, No Modifications Necessary
These hubs are offered with OEM sized wheel studs standard, but we have the option to include high strength 2.5" or 3.25" ARP extended wheel studs if desired. If you would like us to press in the extended studs prior to shipping, that service is available from the drop-down menu as well.
The high strength ARP wheel studs are made from heat treated 8740 chromoly, nominally rated at 190,000 PSI tensile strength, and are recommended for racing application or applications which will utilize wheel spacers.
Note: The option to include ARP wheel studs will add 5 ARP studs per hub assembly purchased. For example, the "single" option will include 5 studs, the "pair" option will include 10 studs and the "full set of four" option will include 20 studs.
