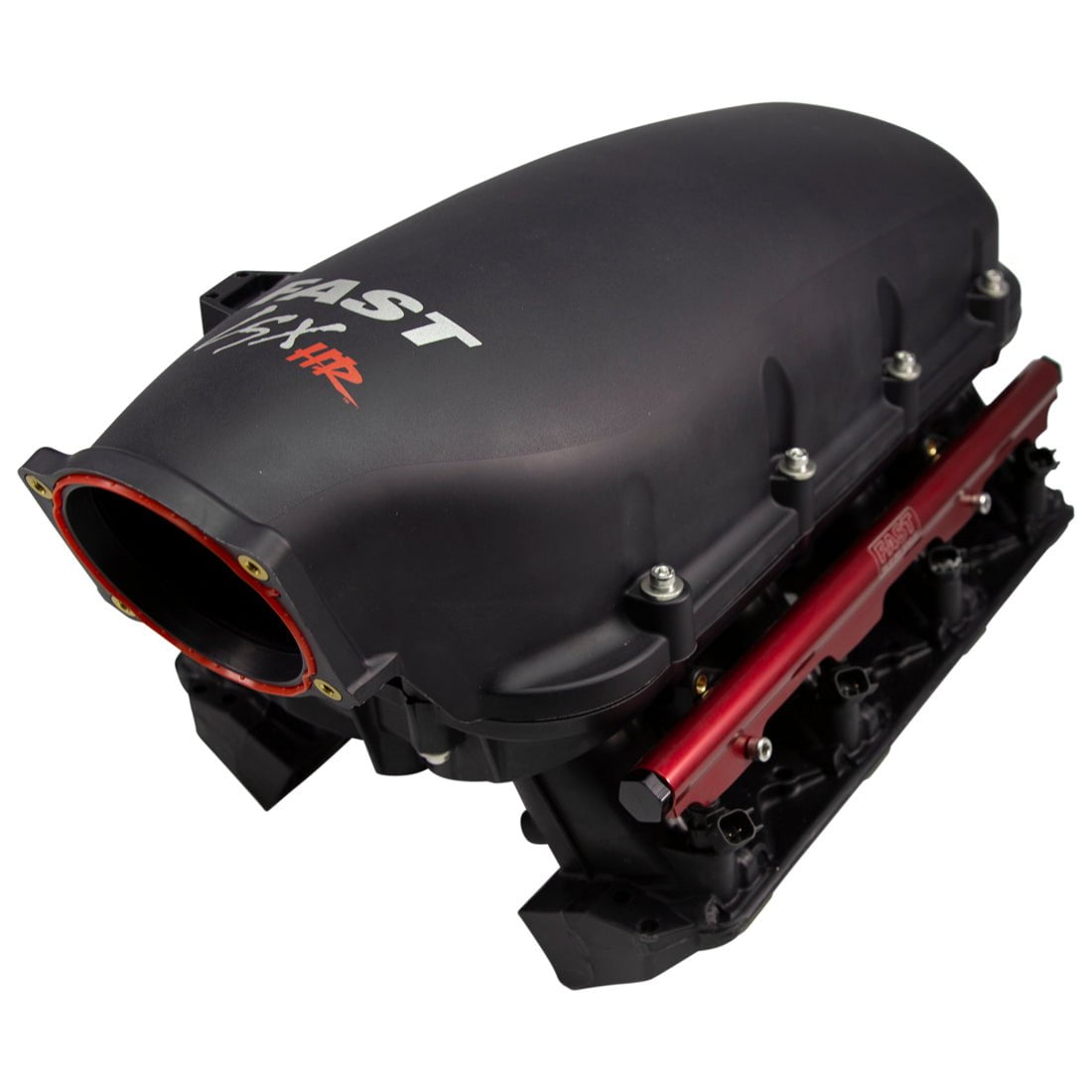

FAST LSXHR - (Rectangular-103mm) BLACK 146106
The LSXHR‚ 103mm Intake Manifold for LS3 Rectangular Port applications is the industry's first polymer tunnel ram-style intake manifold and is ideal for generating maximum power in boosted and naturally aspirated engines.
Features:
- Standard "tall" stacks are interchangeable with separately purchased "medium" and "short" stacks to find the most powerful combination
- Polymer construction is lightweight and high strength to eliminate power-robbing heat soak commonly found in aluminum intake manifolds
- Average 30 HP gain between 5,000 and 7,500 RPM over competitors' high ram intake manifolds
- Rated for up to 45psi of continuous pressure
- Compound fuel injector angle aims spray pattern for ideal atomization, resulting in maximum power production and superior drivability
- Reversible top allows for forward- or firewall-facing throttle body installations
- Two nitrous nozzle bosses per runner for clean and easy direct port system installations
- 103mm Throttle body opening can be ported to 105mm
NOTE: This is a high ram style intake so hood clearance may be a concern in some applications.
| Part Number |
146106 |
| Brand |
Fast |
| Engine Type |
Gen III/Gen IV |
| Port Style |
Rectangular |
|
Throttle Body Port
|
103mm |
