Made in the USA!

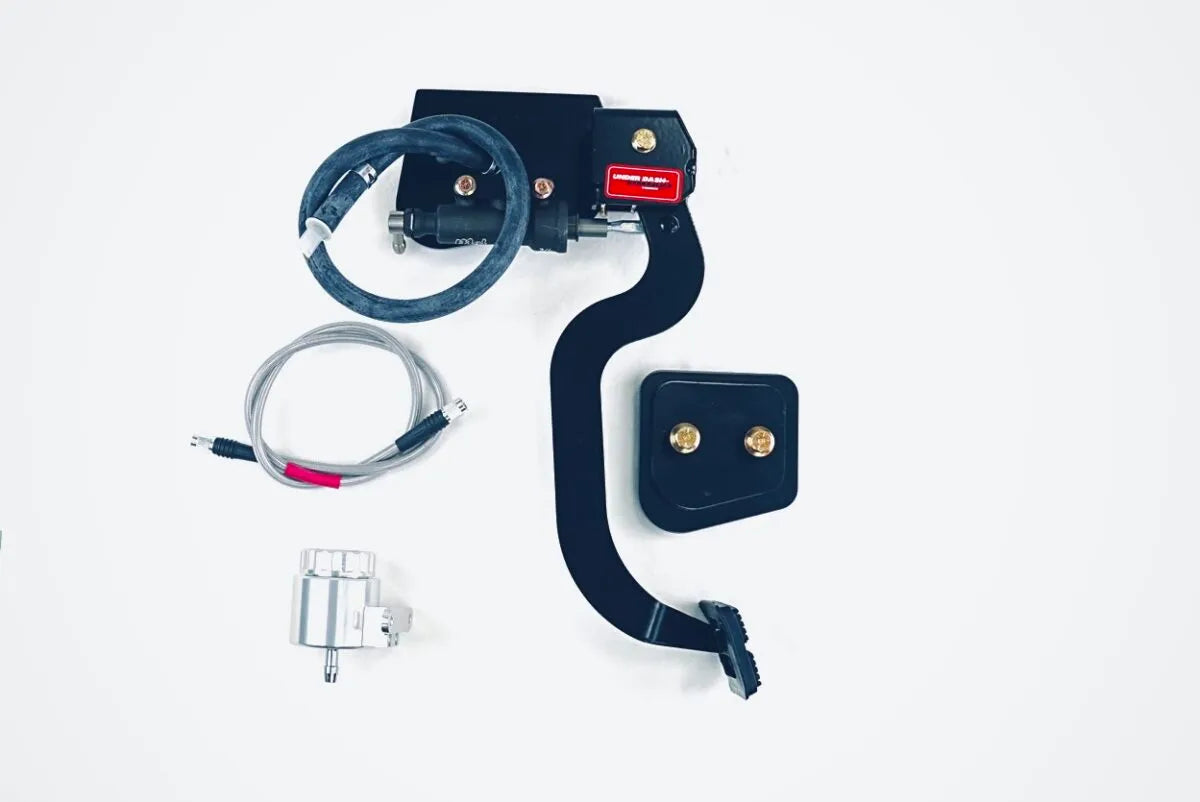

This hydraulic clutch pedal kit converts your automatic pedal box into a hydraulic system with an easy bolt in install. The clutch master cylinder is part of the pedal assembly with nothing to adjust. Just bolt in, mount your reservoir and plumb the lines and your ready to go!
This kit allows you to install both the clutch pedal assembly and the clutch master cylinder hydraulics all in one unit without the need to drill the firewall for bracket pass-through, master cylinder mounting, or pushrod routing. The only holes needed in the firewall are two small holes for the reservoir hose and pressure line running to the slave cylinder.
Features:
- All steel heavy duty bracket and pedal arm construction.
- Includes 3/4" bore by 1-3/8" stroke integrated master cylinder (no drilling the firewall for a pass-though bracket!)
- Complete bolt-in under-dash design
-
Includes billet reservoir with reservoir line & braided line to hydraulic throwout bearing with 3AN fitting
Important Notes:
*This kit does not utilize the OEM clutch pedal switch and is intended for the installer to bypass that function. If you would like a universal clutch pedal/neutral safety switch it is available for $69.99 and is a universal 2 wire type install.
