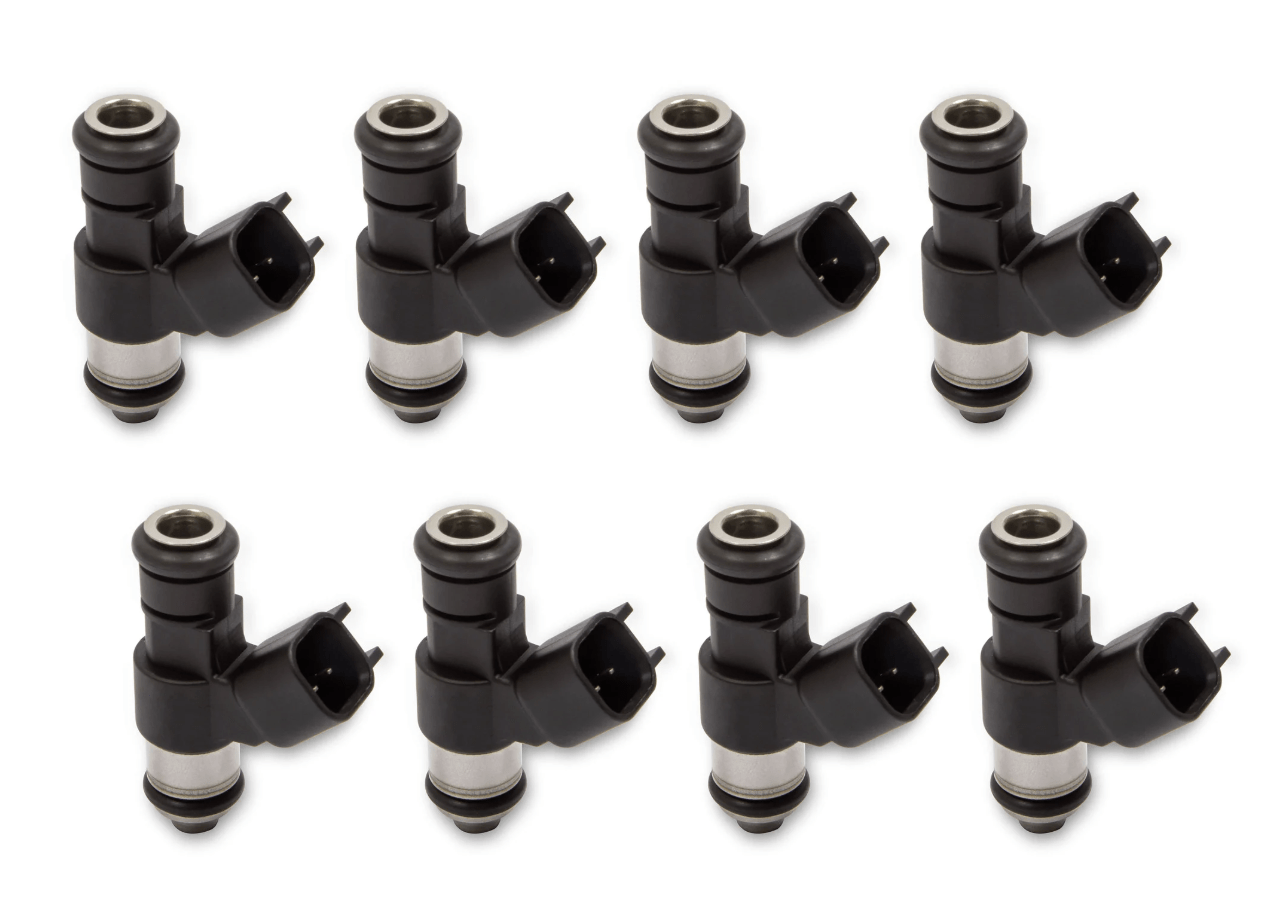

Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Features:
- PICO/EV6 style performance injectors – set of 8
- High impedance for use with saturated drivers
- Rated injector flow: 100 lb./hr. at 60 PSI of base fuel pressure
- USCAR injector connector
- 40mm o-ring to o-ring length
| Part Number |
522-108X
|
| Part Type |
Fuel Injector |
| Brand |
Holley |
| Height |
LS3/L99/L76/LS7 |
| Flow Rate @ 43.5 psi |
86.5lb/hr (909cc/min) |
| Flow Rate @ 58 psi |
100lb/hr (1050cc/min) |
| Connector Style |
EV6/USCAR
|
| Quantity |
Set of 8 |
