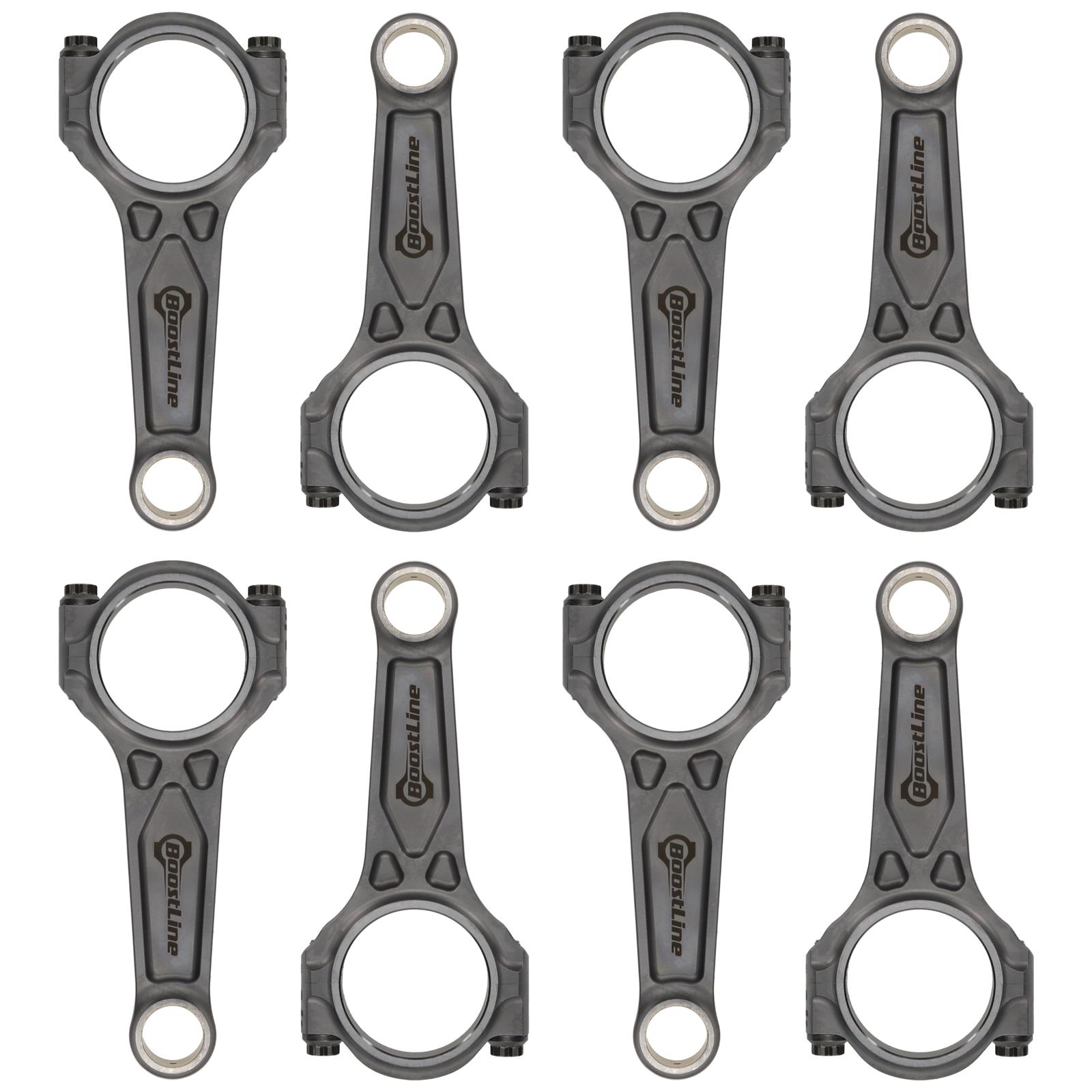

WISECO BOOSTLINE FORGED CONNECTING RODS - SET OF 8 - FOR GEN 5 5.3L/6.2L LT1/L86/L87 ENGINES
NOTE: 6.125" length requires the use of aftermarket pistons. NOT compatible with OEM GM pistons.
Connecting Rod Style: Hybrid H-Beam
Rod Length: 6.125"
Piston Pin Size: .927"
Rod Journal Size: 2.100"
Rod Bolts: ARP 2000
BoostLine connecting rods are designed specifically for demanding turbocharged, supercharged, and big nitrous applications. The patented, 3-pocket body forged from premium 4340 steel incorporates the best features of both the H-beam (mass/weight) and I-beam (strength) designs. This provides 60 percent more bending strength compared to common H-beam rods. Each piece is heat-treated, shot-peened, and fitted with ARP-2000 cap screws (strong, malleable, and 220,000 psi rating) before final finish machining. Keep things straight with a set of BoostLine connecting rods (also available individually). Order the connecting rods in the model recommended for your specific engine size.
Features:
- High-quality Ampco bushing material used in the small end
- Pin clearance at between 9-ten-thousandths and 11-thousandths of an inch (allows engine builder to custom set wrist pin spec, should additional clearance be necessary)
- All BoostLine rods are individually inspected via a coordinate measuring machine (CMM) that is used to custom-match sets of rods to incredibly tight tolerances
- Each rod includes an inspection report from the Wiseco Piston quality team
- Rods are completely separated by thick foam for protection from shipping damage
- Each rod is vacuum-wrapped in plastic for corrosion protection
NOTE: Connecting rods only. Bearings must be purchased separately.
