BTR GEN 5 LT FORGED H BEAM CONNECTING RODS (6.125") W/ ARP BOLTS - SET OF 8

$759.99

🚚 FREE SHIPPING*

PRODUCT DETAILS

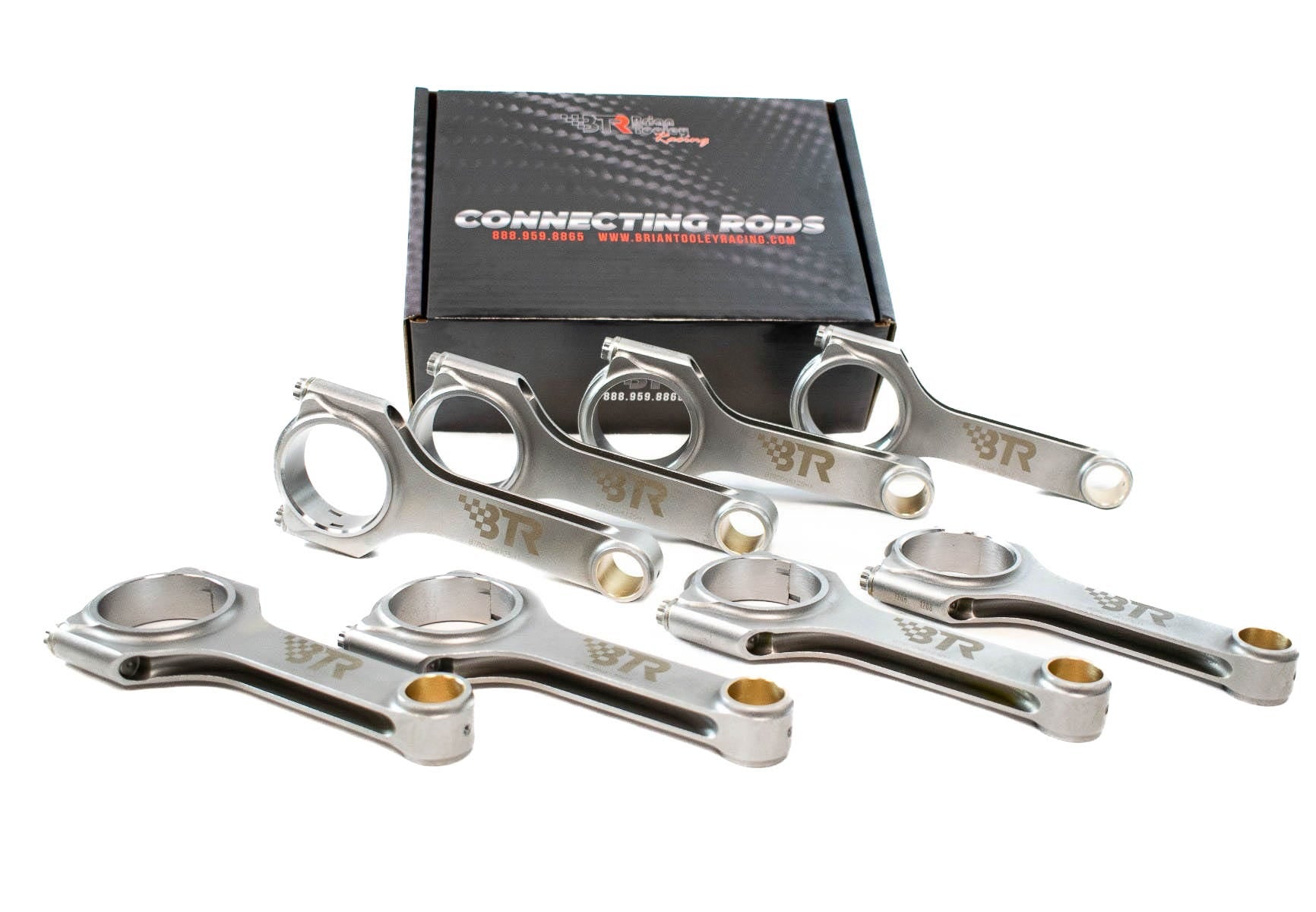

BRIAN TOOLEY RACING 4340 FORGED H BEAM CONNECTING RODS (6.125" LONG) W/ ARP BOLTS - SET OF 8 - FOR GEN 5 5.3L/6.2L LT1/L86/L87 ENGINES



NOTE: 6.125" length requires the use of aftermarket pistons. NOT compatible with OEM GM pistons.

Connecting Rod Style:  FORGED H-BEAM
Rod Length:  6.125"
Piston Pin Size:  .927"
Rod Journal Size:  2.100"

Rod Bolts: ARP 2000



State of the art 4340 H-Beam Connecting Rod. They feature heat-treated, stress relieved  and shot peened bodies. The C/L-C/L length is 6.125" with a 2.100 bearing housing and bronze bushed .9278" pin bore. The cap and rod are serialized at the parting line to ensure proper mating after disassembly. BTR inspects them for bearing housing dia. , pin bore dia. ,bend/twist and C/L length. They are pre-torqued with high pressure lube and 7/16-20 x 1.600" ARP 2000 bolts. Sets of 8 are matched within 2 grams overall. The rods weigh in at approx. 665 grams. Laser marked on the beam with the BTR logo, the rods are individually bagged (VCI) and sealed. They are boxed in sets of 8.



NOTE: Connecting rods only. Bearings must be purchased separately.
