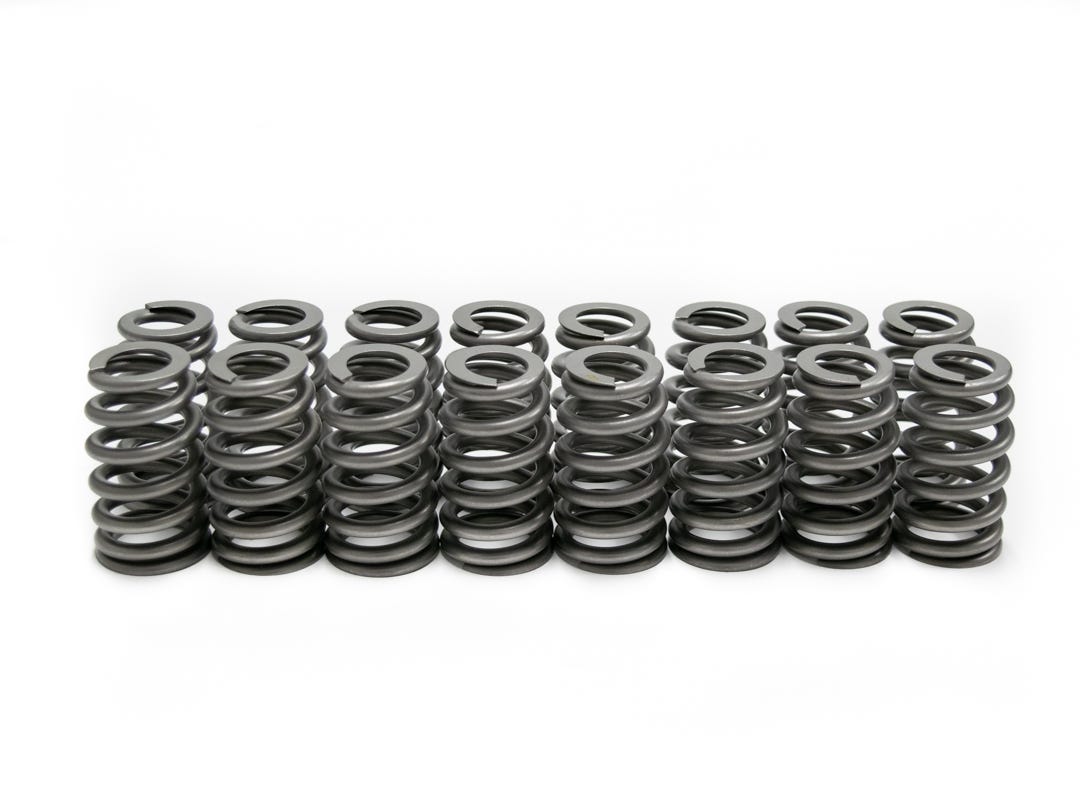

BTR .560" LS6 BEEHIVE VALVE SPRING SET - SP011-16
BTR's .560" lift LS6-style valve springs gives you all of the performance of the venerable OEM LS6 valve spring (GM part # 12499224 or 12586484) at a fraction of the cost. These springs pair perfectly with the BTR truck series camshafts and are also a great option for replacing worn out or broken springs in stock applications. Option to include BTR hat style valve seals (Part Number: VS LS Hat Kit).
Spring Specs:
- 100 lbs @ 1.800”
- 285 lbs @ 1.240”
- Coil bind @ 1.150”
NOTE: BTR does not recommend single wire conical or beehive springs with roller rockers due to the extra mass causing loss of valve train stability, or the use of a higher ratio rocker as it could possibly cause a coil bind issue. If you have a specific combination of valvetrain parts you are needing to use a roller rocker on, please call in to our sales team for clarification.
| Part Number |
SP011-16 |
| Part Type |
Valve Springs |
| Brand |
Brian Tooley Racing |
| Engine Type |
Gen III/IV |
| Max Lift |
.560 |
| Style |
Beehive |
| Quantity |
Set of 16 (Springs Only) |
